Motor failure to start is a common circuit system issue. The following 5 troubleshooting steps can systematically locate faults, and efficient repair can be achieved with compatible parts replacement:
Power connection inspection: Use a multimeter to measure battery voltage (must be ≥12V), check if positive and negative terminals are oxidized (clean with baking soda solution recommended), and ensure cable connector tightening torque reaches 8-10N·m to avoid power interruption due to loose connection. Original cables use aging-resistant insulation, and aftermarket cables have the same diameter as original (≥6mm²) to ensure stable current transmission.
Starter relay troubleshooting: Disconnect power, pull out the relay, and short-circuit pins 30 and 87 with a wire. If the motor runs, the relay is faulty. Original relay contacts have a gold plating thickness of ≥0.5μm, resistant to 100,000 on-off cycles; aftermarket relays pass load tests with pull-in voltage ≤9V, suitable for budget-limited scenarios.
Solenoid switch testing: Measure switch coil resistance (standard value 9-12Ω); replace if open or with abnormal resistance. Original switch stroke error ≤0.3mm, with precise meshing with motor gears; aftermarket switches use contacts of equivalent material, with pull-in time ≤0.2 seconds, meeting regular starting needs.
Grounding circuit check: Use a milliohm meter to measure grounding cable resistance (must be ≤0.3Ω), focus on checking if engine housing grounding points are rusted, and recommend using copper terminals to improve conductivity. The compatible original grounding kit includes anti-loose washers, and the aftermarket kit passes salt spray tests, with corrosion resistance reaching 90% of the original level.

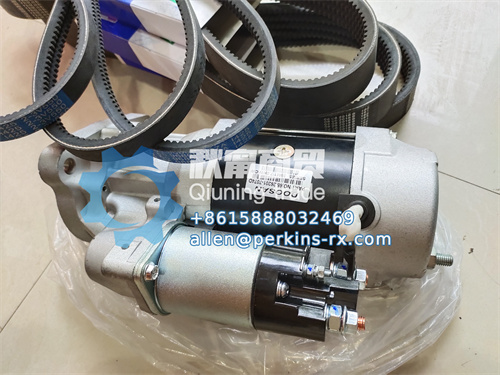

Motor body inspection: After disassembly, check carbon brush wear (remaining length ≥6mm) and commutator segment insulation (must be ≥500MΩ). Original motor brushes provided by Ningbo Qiuning contain 30% copper; aftermarket brushes use the same formula material, with a service life of over 8,000 starts, both supporting free technical consultation.
We stock mainstream motor models, with 18-month warranty for original products and 12-month warranty for aftermarket products, supporting global delivery within 48 hours. For complex circuit faults, contact us for customized troubleshooting solutions:
