1、 Product Features and Core Technologies
The 2485613 thermostat is the core control component of the Perkins engine cooling system, which automatically adjusts the coolant flow rate through a built-in high-sensitivity wax type temperature sensing element. When the engine starts at low temperature, the thermostat closes the circulation channel to accelerate the warm-up process; When the temperature rises to the set value (usually 82-90 ℃), the valve gradually opens to ensure efficient circulation of coolant between the radiator and the engine. Its dual valve design can balance large and small circulation flow rates, avoiding thermal stress damage to the cylinder caused by sudden temperature changes.
2、 Material craftsmanship and durability characteristics
Aerospace grade materials: The main valve body is made of 304 stainless steel stamped and formed, with corrosion resistance increased by more than 50% compared to ordinary copper materials; The spring components have undergone special heat treatment and have a fatigue strength of up to 1 million opening and closing tests.
Precision sealing technology: The valve seat and sealing ring are made of fluororubber material (temperature resistance -40 ℃ to 200 ℃), which is detected by helium mass spectrometer leak detector to ensure zero leakage.
Calibration accuracy: Each thermostat is calibrated for opening temperature in a constant temperature water bath, with an error range of ± 1.5 ℃, far exceeding the industry standard of ± 3 ℃.
3、 Performance advantages and measured data
Quick warm-up: Shortens engine warm-up time by 40% compared to ordinary thermostats, reducing cold start wear and tear
Fuel consumption optimization: Maintain the optimal operating temperature of the engine (85-95 ℃), improve fuel efficiency by 5-8%
Compressive durability: burst pressure ≥ 1.2MPa, suitable for high-pressure cooling systems (common values 0.5-0.8MPa)
Wide compatibility: compatible with Perkins 1004/1006/1104 series engines, suitable for construction machinery, generator sets, agricultural equipment, etc
4、 Authentic product identification and procurement guarantee

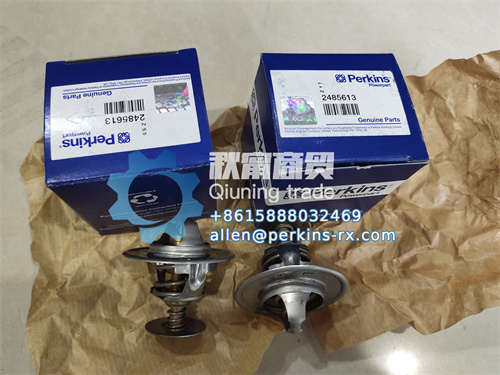

Appearance label: Genuine thermostat shell laser engraved product number (2485613) and opening temperature value, clear and burr free font
Channel verification: It is recommended to purchase through suppliers such as Ningbo Qiuning Trading Co., Ltd. or official channels
After sales support: Provide installation technical guidance and quality dispute resolution solutions
5、 Installation and Maintenance Guide
Installation specifications: The engine interface needs to be cleaned, and the sealing surface should be evenly coated with special sealant. The torque should be controlled within 15-20N · m
Fault warning: If the engine water temperature gauge continues to fluctuate low or high, check the flexibility of the thermostat valve opening and closing
Replacement cycle: It is recommended to perform preventive replacement every 3000 working hours or 2 years
6、 Service support and contact information
We provide full cycle product technical support and supply chain assurance. If you need detailed technical parameters, bulk procurement quotes, or emergency transfer services, please feel free to contact us through the following methods:
