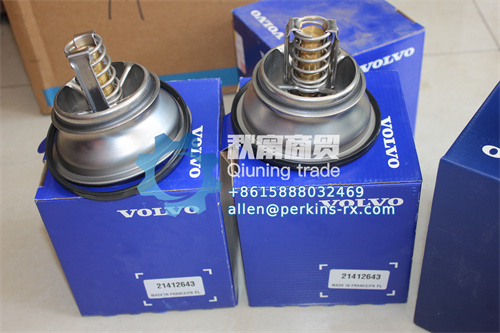

The thermostat of the Volvo 21412643 generator set is the "intelligent temperature manager" of the engine cooling system, undertaking the important mission of precisely regulating the operating temperature of the engine. This thermostat ensures that the generator set maintains the optimal operating temperature under different loads and environmental conditions by automatically adjusting the coolant circulation path and flow rate, thereby enhancing engine efficiency and extending the service life of the equipment.
Youdaoplaceholder0 Working principle and technological innovation
This thermostat adopts advanced wax temperature-sensing technology, with its core being a specially formulated temperature-sensing wax component. When the coolant temperature drops below the set value, the thermostat remains closed, and the coolant circulates slightly inside the engine, accelerating the warm-up process. When the temperature reaches the preset opening temperature (usually 82-85℃), the temperature-sensing wax expands to generate a thrust, gradually pushing the valve core to open. The coolant then begins to circulate through the radiator in a large cycle, effectively dissipating excess heat.
The product adopts a stainless steel main structure formed by precision stamping, featuring excellent corrosion resistance and fatigue resistance. The unique dual-valve design ensures a smooth transition under different working conditions and avoids temperature fluctuations. The high-precision temperature sensing element offers a temperature control accuracy of ±1.5℃, far exceeding the control performance of ordinary thermostats.
Youdaoplaceholder0 performance characteristics and quality assurance
Precise temperature control: Utilizing imported temperature-sensing wax materials, the start-up temperature is accurate and stable, ensuring that the engine always operates within the optimal temperature range
Fast response: Optimized heat conduction design, high temperature sensitivity, fast response speed, and timely adjustment of coolant flow
Durable and reliable: Stainless steel main valve and spring, specially treated sealing surface, corrosion-resistant, wear-resistant, long service life
Perfect match: Specifically designed for Volvo generator sets, the installation dimensions and performance parameters are exactly the same as the original components
Youdaoplaceholder0 Fault symptoms and maintenance guide
Thermostat failure is usually manifested as: abnormally prolonged engine preheating time, excessively high or low working temperature, and large fluctuations in the thermometer pointer, etc. These malfunctions can lead to problems such as increased fuel consumption, reduced engine power, and deteriorated emissions.
It is very important to regularly check the working condition of the thermostat. Simple inspection methods include: observing whether the engine preheating time is normal; Check whether the coolant temperature is stable within the standard range; Regularly disassemble and check whether the thermostat opens smoothly and whether the seal is good. It is recommended to carry out preventive replacement in accordance with the maintenance cycle of the engine manufacturer, usually every 2 to 3 years or after 3,000 to 5,000 hours of operation.
Youdaoplaceholder0 installation notes
When installing a new thermostat, please pay attention to the following key points: Clean the installation base and pipes to ensure there are no impurities or corrosive substances; Confirm that the thermostat is installed in the correct direction (usually marked with an arrow on the "engine side"); Use the appropriate sealant or gasket to ensure reliable sealing. After installation, check the coolant level and remove air bubbles. Correct installation is the prerequisite for ensuring the normal operation of the thermostat.
Youdaoplaceholder0 Purchase suggestions
When choosing a thermostat, model matching is of vital importance. Different models of Volvo generator sets have specific requirements for the opening temperature, flow characteristics and installation dimensions of the thermostat. Please select the correct thermostat model according to the generator set model and engine serial number.
Ningbo Qiuning Trading Co., Ltd. supplies Volvo 21412643 generator set thermostat products of original factory quality. All products have undergone strict quality inspection and performance testing to ensure they meet the technical standards of the original factory. At the same time, to meet the diverse needs of different customers, we also offer a variety of economical alternative solutions. These products provide more competitive price options while ensuring basic usage functions.
We are a supplier of various engine assemblies and engine parts in China, with a wide range of brands and types. We have a huge warehouse for storage and a professional after-sales maintenance team. Both original and auxiliary factories are available, with global supply.
Ningbo Qiuning Trading Co., LTD. Service Supply and Sales Center
Our company offers a wide range of engine assemblies and accessories of different brands and models
If you are interested, you can directly add my contact information
WeChat/WhatsApp: +8615888032469
E-mail: allen@perkins-rx.com
Note the model or serial number for faster processing and more favorable prices
We offer global logistics and distribution services, guarantee authenticity and support online ordering.
