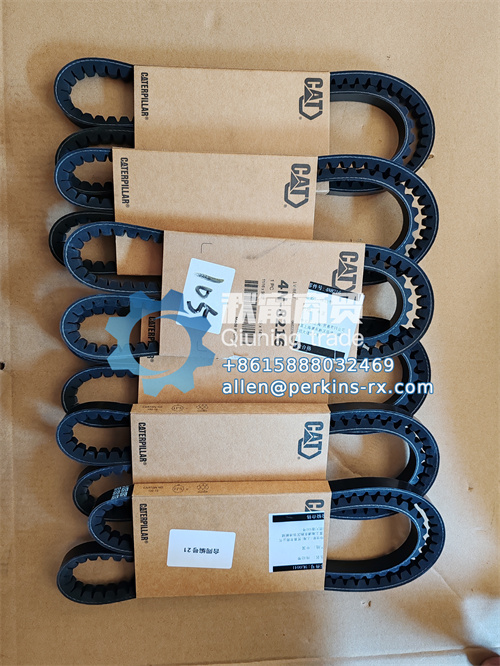

The Caterpillar 4N-8216 gear V-belt is a high-performance drive belt produced by Caterpillar Inc. and is one of its over 900 belt products. This belt adopts a Toothed V-Belt design, combining the inclined surface friction force principle of traditional V-belts with the advantages of the toothed structure, achieving better flexibility, heat dissipation performance and working smoothness than ordinary V-belts. It is specially designed for demanding transmission systems and is suitable for power transmission in heavy machinery, engines, water pumps and other industrial equipment.
Product features and advantages
Outstanding materials and craftsmanship
This belt is made of ultra-high molecular weight thermoplastic rubber as the main material. It features excellent wear resistance, water resistance, oil resistance, aging resistance, chemical resistance (acid and alkali), and low-temperature resistance without vulcanization. It has no odor and a long service life. Its high-strength polyester cord serves as the tensile body, providing high tensile strength and low elongation, ensuring transmission efficiency and high reliability. Some Caterpillar belts also use neoprene and aramid fiber reinforced materials to resist heavy loads during the operation of engines and other equipment.
Tooth profile structure design
The tooth profile structure of 4N-8216 is its core advantage. This design not only enhances the flexibility of the belt, enabling it to operate flexibly on small pulleys, but also increases the heat dissipation area, allowing for faster heat dissipation and avoiding the early failure of traditional V-belts due to overheating. The operation is thus more stable and the noise is lower.
High-performance applications
This belt can withstand high-power high-speed transmission and is an ideal choice for heavy equipment and harsh working conditions. It has a high transmission efficiency, with a linear speed that can reach a relatively high level, and can adapt to environments with fluctuating loads.
Durability and reliability
Caterpillar parts are manufactured to precise technical specifications and are renowned for their robustness, durability and reliable performance. The design and material selection of this belt ensure its long service life and stable transmission performance, reducing downtime for maintenance.
Application field
Caterpillar 4N-8216 gear V-belt is widely used in various Caterpillar mechanical equipment and industrial equipment of other brands. Typical applications include:
Engine accessory drive: such as the transmission of water pumps, generators, fans, etc.
Industrial mechanical transmission: Applicable to mining machinery, printing equipment, air compressors, agricultural machinery, etc.
Any V-belt drive system that requires high reliability and high power transmission.
Installation and Maintenance Guide
Correct installation and maintenance are crucial for maximizing the lifespan of the belt:
Pre-installation inspection: Before installation, it is essential to check the condition of the pulley (sprocket). The wheel grooves should be smooth without scratches, sharp steps, rust or dirt, and the dimensions should comply with the standards. Worn pulleys will significantly shorten the belt's lifespan.
Calibrate parallelism: Before installation, the parallelism of the shaft and pulley needs to be calibrated. Excessive parallelism deviation can lead to uneven wear and premature failure of the belt.
Correct installation: During installation, one side of the pulley should be loosened, and the belt should be easily installed before tensioning. Never use tools to forcibly pry into the belt to avoid damaging its strong layer. After the initial installation, it is recommended to start the machine and run it for 24 hours before tensioning again. Generally, no adjustment is required thereafter.
Maintenance suggestions: Regularly inspect the transmission system, including the condition of the pulleys, parallelism, and whether the belts have abnormal elongation, wear or heat accumulation. When replacing, it is recommended to replace the belts in groups to avoid mixing new and old ones, so as to ensure the best transmission effect and service life.
Procurement information
Ningbo Qiuning Trading Co., LTD., as a supplier, can provide procurement channels for Caterpillar 4N-8216 gear V-belts. For users who pursue original quality, the company offers genuine products of the corresponding model to ensure compatibility and reliability with Caterpillar equipment.
At the same time, we fully understand the budget considerations of different clients. Ningbo Qiuning Trading Co., Ltd. also provides alternative products that meet relevant specification requirements for customers with limited budgets (commonly known as "second-hand parts" or "price substitutes"). These alternative products are designed to offer an economical choice, but still strive to meet basic performance and usage requirements. When making a purchase, it is recommended that you clearly communicate your specific requirements and budget with the company to obtain the most suitable product options.
Precautions
When making a purchase, please confirm the specification and model of the belt according to the equipment model and transmission requirements.
Whether you choose genuine products or alternative ones, it is crucial to ensure that their size and model match your transmission system.
Proper installation and maintenance are the keys to ensuring that any belt performs at its best and reaches its expected service life.
