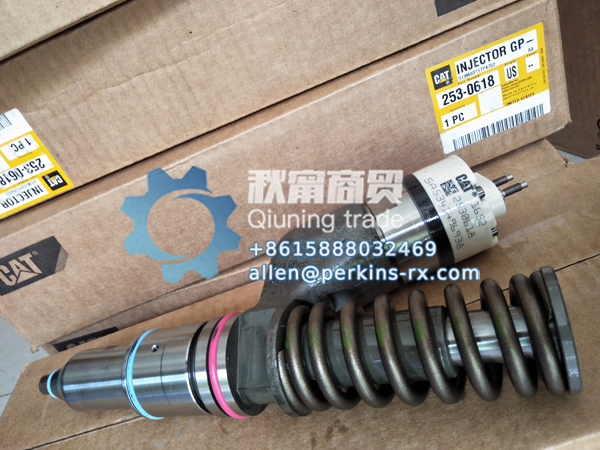

Caterpillar CAT injector 2530618, as a key component of the power system, is designed for various engines such as C15, C18, C32, as well as 385C mobile hydraulic power units, 657E and 657G wheeled tractors and many other equipment, with excellent adaptability. It adopts ultra precise fuel injection design, which can strictly control the fuel injection quantity and angle, ensuring precise atomization of fuel in the combustion chamber, greatly optimizing the combustion effect, not only helping the engine output strong power, but also significantly improving fuel economy, achieving low fuel consumption and high-efficiency operation. In terms of material and construction, high-quality steel is selected to create a highly reliable structure with excellent wear resistance and corrosion resistance. It can adapt to high-pressure environments, stabilize injection flow, ensure long-term stable operation of fuel injectors under harsh working conditions, reduce the occurrence of failures, and lower maintenance costs. It is an ideal choice for users who pursue high-performance and long-life equipment.
If you are interested, please contact us: allen@perkins-rx.com
The working principle of an injector is to inject high-pressure oil into the fuel supply port of the injector through a high-pressure oil pump. High pressure is generated inside the injector body and acts on the conical surface of the injector nozzle. When the oil pressure exceeds the set value, the valve core of the injector will open, and high-pressure oil will be sprayed out from the small hole of the nozzle, forming a mist, and sprayed into the engine cylinder for combustion, thereby driving the piston to move back and forth. Injectors are usually composed of an injector body, an injector nozzle, a support, and a spring. According to different structures, injectors can be divided into axial needle electromagnetic injectors, ball valve electromagnetic injectors, plate valve electromagnetic injectors, and lower inlet injectors. The function of fuel injectors in automobiles is to inject fuel into the intake manifold or cylinder according to the injection timing and pulse width calculated by the engine ECU. In this way, the fuel injector can accurately control the injection amount and timing of fuel, thereby improving the combustion efficiency and performance of the engine. It should be noted that the working principle of the fuel injector involves the injection and combustion process of high-pressure oil. Therefore, when using and maintaining the fuel injector, safety and maintenance should be taken into account to avoid damage and malfunction.
Caterpillar's full range of product models includes: 169330033010133014302430543056306631143116, S6K，3126，3126B，3126E，3145，3150，3160，3176，3176B，3176C，3196，3204，3208，3304，3304B，G3304，3306，3306B，3306C，G3306，3406，3406B，3406C，3406E，3408，3408B，3408C，3408E，G3408，3412，3412C，3412E，G3412，3456，3504，3504B，3508，3508B，G3508，3512，3512B，G3512，PM3512，3516，3516B，G3516，PM3516 class
The categories of Caterpillar original accessories sold by our company include:
① Engine components: turbocharger, *, generator, starter motor, water pump, oil pump, four matching parts, engine assembly, oil pump nozzle;
② Chassis components (four-wheel belt): tensioning cylinder, tensioning spring, guide wheel, drive teeth, supporting wheel, idler wheel, chain rail/chain, track plate, and loose link chain;
③ Hydraulic components: hydraulic pump, rotary motor, solenoid valve, walking balance valve, central rotary joint, hydraulic cylinder;
④ Electrical components: sensors, wiring harnesses, complete machine computer board ECM, display screen, engine computer version ECM;
⑤ Maintenance parts: filter element, engine oil, hydraulic oil, butter;
⑥ Radiators: water tank, hydraulic oil radiator, intercooler;
⑦ Cabin air conditioning: compressor, air conditioning panel, warm air tank, condenser, cabin assembly;
⑧ Rotary bearings, bearings, and pin shafts.
⑨ Disassembled parts: reducer, hydraulic pump, motor, cylinder head, cylinder block, crankshaft, display, engine computer board ECM, complete machine computer board ECM.
⑩ Engine overhaul, complete machine harness replacement, hydraulic pump overhaul.
