The function and importance of the product

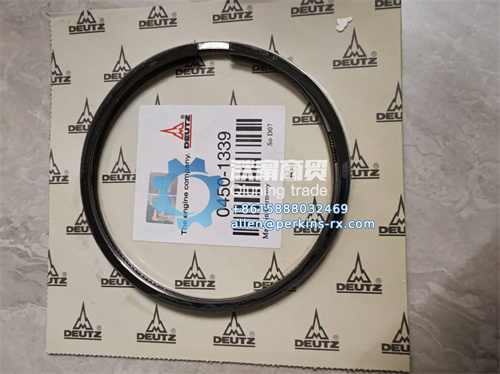

Piston rings are the "heart seals" of an engine and are crucial to its performance and lifespan. The main functions of the 04501339 piston ring include:
Sealed combustion chamber: Prevents high-temperature and high-pressure gas in the cylinder from leaking into the crankcase, ensuring that the engine has sufficient compression pressure and power output, and improving thermal efficiency.
Regulating the engine oil (oil control) : Scrape off the excess lubricating oil on the cylinder wall to form a uniform thin oil film on the cylinder wall, ensuring the normal lubrication of the cylinder, piston and piston rings, and preventing excessive consumption of engine oil (oil burning).
Heat conduction and dissipation: Approximately 70% to 80% of the heat at the top of the piston is transferred to the cylinder wall through the piston rings and then dissipated by the cooling system, effectively preventing the piston from overheating.
Support and guidance: Assist the piston in moving smoothly within the cylinder, reducing frictional resistance and abnormal wear.
A high-quality, well-matched piston ring can significantly enhance engine efficiency, reduce oil consumption, cut emissions, and extend the overhaul cycle.
Maintenance, replacement and installation suggestions
Proper maintenance and installation can greatly extend the lifespan of piston rings and engines.
Replacement timing: When the engine experiences a decrease in power, an abnormal increase in oil consumption (burning oil), blue smoke, insufficient compression pressure, etc., after ruling out other causes, it is necessary to consider inspecting and replacing the piston rings. When overhauling the engine, the piston rings must be replaced as a complete set.
Matching replacement: It is strongly recommended that when replacing the piston rings, the wear condition of the cylinder liner be checked simultaneously. If the wear of the cylinder liner exceeds the standard (such as obvious steps, excessive roundness or cylindricity errors), the cylinder liner must be replaced simultaneously; otherwise, the new piston rings cannot fit well with the old cylinder wall, which will lead to rapid wear and re-failure.
Key installation steps
Cleaning: Ensure that the piston, piston ring grooves and cylinder liner are absolutely clean, free of carbon deposits and impurities.
Check the "three clearances" : Before installation, it is necessary to inspect the end clearance (open clearance), side clearance (clearance within the ring groove), and back clearance to ensure that their values comply with the technical specifications of Deutz engines. If the end gap is too small, it may cause the cylinder to be jammed during thermal expansion; if it is too large, it will affect the sealing.
Use specialized tools: Be sure to use a piston ring expander for installation to avoid overbending it by hand, which may cause deformation or breakage of the piston rings.
Staggered openings: The opening directions of each piston ring should be staggered according to technical requirements (usually avoiding alignment with the piston pin hole and the main thrust surface, and should be staggered by 90° or 120°) to maximize the sealing effect.
Lubrication: When installing, apply sufficient clean engine oil to the piston rings, piston pins and cylinder walls.
Running-in period: After replacing the new piston rings, the engine must undergo a thorough running-in (it is usually recommended to follow the running-in specification from low load to gradually increasing load within 16 hours) to ensure a good fit between the piston rings and the cylinder wall. High-load operation without running-in will accelerate wear.
Frequently Asked Questions (FAQ
Q: How can I determine if my Deutz engine needs to have its piston rings replaced?
Common signs include insufficient engine power, difficulty in starting, blue smoke from the exhaust pipe (oil burning), significantly accelerated oil consumption, and increased air leakage from the crankcase vent. The final confirmation requires professional diagnosis such as cylinder pressure testing.
Q: Why is it necessary to check the cylinder liner when installing new piston rings?
A: Old cylinder liners are usually worn out, and the shape of their inner circular surfaces does not match that of new piston rings. If a new ring is installed into a worn cylinder liner and an effective seal cannot be formed, the new ring will wear out rapidly and the problem cannot be fundamentally solved. Therefore, it is the best practice to replace the entire set (piston rings, cylinder liners, pistons, etc.).
Q: Can piston rings produced by third-party manufacturers be chosen?
A: Genuine Deutz piston rings can ensure a perfect match with the engine in terms of material, heat treatment, profile design and manufacturing precision, providing the best performance and durability. For situations with limited budgets or where performance requirements are not extremely strict, it is advisable to choose reputable third-party brands (such as products from well-known domestic piston ring manufacturers that meet standards), but it is essential to ensure that their materials and craftsmanship are reliable and their dimensional accuracy meets the standards.
Choose our advantages
Reliable products: We are well aware of the significance of piston rings to engines. You can obtain genuine Deutz piston rings from us, ensuring that their materials, craftsmanship and performance fully meet the design requirements of the engine.
Flexible selection: We understand the budget differences of customers at different project stages, and thus also offer market-proven high cost-performance third-party alternative options. These products are produced by professional manufacturers, with main technical parameters in compliance with specifications, and can meet basic usage requirements.
Professional support: We offer product consultation and technical advice (such as installation precautions) to help you make an appropriate choice based on your actual situation.
