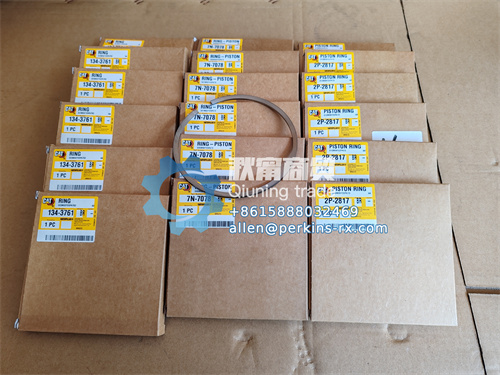

Caterpillar 134-3761 piston rings are core engine components, precision-manufactured to ensure a perfect match with Caterpillar 3406, 3406E, and C15 engines. These piston rings create an effective seal within the cylinder, preventing excessive oil consumption and power loss while maintaining optimal engine performance.
Designed to meet original equipment manufacturer specifications, these piston rings deliver consistent performance. Each set undergoes rigorous quality control to ensure they meet the high standards required by these engines.
Key Benefits
Precise Fit: Specifically designed for the Caterpillar 3406, 3406E, and C15 engines, ensuring a perfect fit and superior performance.
Reliable Sealing: High-quality materials and precision craftsmanship provide excellent cylinder sealing, effectively maintaining the engine's compression ratio.
Durable Design: A robust structural design ensures long-term stability under harsh operating conditions, minimizing failures.
Easy Installation: Standardized dimensions simplify installation and reduce maintenance time.
Professional Installation Guide: Proper installation is critical to ensuring piston ring performance and longevity. The following are the key points for piston ring installation:
Adjusting the piston ring gap: The piston ring gap refers to the clearance between the two ends of the piston ring's opening after the piston ring is installed in the cylinder. Install the selected piston ring evenly into the cylinder. Use the piston head to push the piston ring to an unworn area in the cylinder. Then use a feeler gauge to measure the gap.
The standard gap for Caterpillar engine piston rings is: 0.40-0.70mm for the first ring, 0.25-0.55mm for the second ring, and 0.25-0.55mm for the oil ring.
Checking the side clearance: The side clearance refers to the gap between the ring and the flat surface of the ring groove. To measure, place the piston ring in its respective groove. Ensure it rotates freely without any sticking. Use a feeler gauge to measure the side clearance. The standard side clearance for Caterpillar engine piston rings is: 0.095-0.115mm for the first ring, 0.085-0.130mm for the second ring, and 0.040-0.085mm for the oil ring. Backlash Confirmation: Backlash refers to the gap between the back of the piston ring and the bottom of the ring groove after the piston and piston ring are installed in the cylinder. A value between 0 and 0.35 mm is generally considered acceptable. A value smaller than 0.35 mm can cause the ring to become stuck in the cylinder.
Staggered Installation: To reduce gas leakage, when installing the piston rings, the first ring should be positioned away from the side that experiences greater force during the power stroke. This means it should be staggered 45° from the piston pin hole. The openings of the remaining rings should be staggered 120° from each other.
Professional Tips for Extending Piston Ring Life
Proper Run-in: After replacing the rings, a hot run-in must be performed before the engine is operated. The ideal run-in time is 16 hours. Proper run-in optimizes the fit between the piston ring and the cylinder wall, extending its service life.
Regular Inspection: Regularly inspect the piston rings for wear. When the engine experiences insufficient power and a leaking piston ring is identified, it's usually time to replace the rings.
Correct Tool Use: Piston ring expansion pliers should be used for both removal and installation. The opening of the expansion pliers should be slightly larger than the piston. Do not manually expand the opening of the pliers beyond the piston. Otherwise, even if the piston ring does not break, it may deform due to improper handling.
Keep it Clean: After assembly, clean the piston ring with gasoline or detergent. Apply a small amount of engine oil to the piston and ring surfaces for pre-lubrication.
Applications
Caterpillar 134-3761 piston rings are suitable for various equipment powered by Caterpillar 3406, 3406E, and C15 engines, including:
Excavators
Heavy-duty trucks
Generators
Industrial power equipment
Purchasing and Service
We understand your need for equipment reliability. Ningbo Qiuning Trading Co., Ltd. is committed to providing high-quality Caterpillar 134-3761 piston rings and professional support. Our products undergo rigorous screening to ensure they meet high quality standards.
To purchase or learn more about the Caterpillar 134-3761 piston ring, please contact us via the following methods:
Email: allen@perkins-rx.com
Website: http://www.cnqn.net/
WhatsApp/WeChat: +8615888032469
Our professional team will provide you with timely technical consultation and procurement support, helping you select the most suitable parts solution for your equipment.
Trust comes from quality, and expertise builds the future! Ningbo Qiuning Trading Co., Ltd. is your reliable partner for Caterpillar engine parts.
