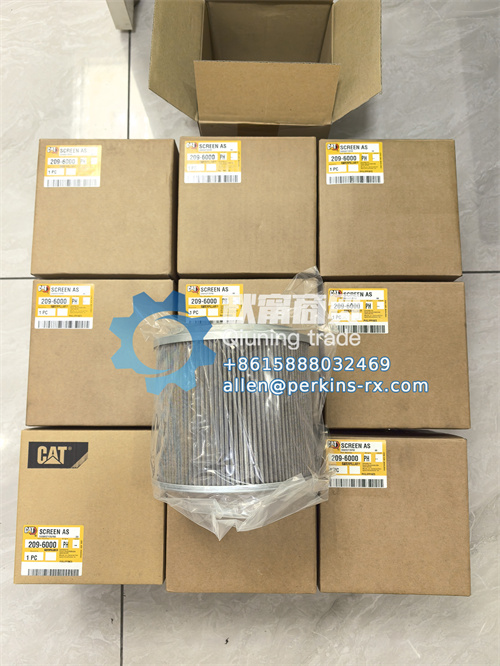

Cat 209-6000 Filter Screen Assembly: The Core Component Ensuring Hydraulic System Stability
In the complex hydraulic systems of Cat excavators and other heavy equipment, the cleanliness of the hydraulic oil directly determines the performance and lifespan of the entire system. If solid particles, sludge, or metal debris contaminate the hydraulic oil, it can lead to abnormal wear, sticking, or seal failure in core components like hydraulic pumps and control valves. This may result in sluggish operation, lack of power, or even system failure. The genuine Cat 209-6000 filter screen assembly is precisely designed to intercept these "invaders," serving as a crucial component in your equipment's preventative maintenance plan.
Core Advantages and Value
The Cat 209-6000 is a hydraulic suction filter element, typically installed inside the hydraulic tank or in the suction line. Its core mission is to effectively capture contaminants before they enter the hydraulic pump. Choosing a genuine part means opting for precise compatibility and reliable performance assurance for your equipment.
Precise Filtration for Reliable Protection: This filter element acts like an "N95 mask" for the hydraulic system, designed to remove harmful particles from the hydraulic oil. Its efficient filtering media helps maintain oil cleanliness, providing a clean working environment for critical hydraulic components, thereby reducing abnormal wear and extending major overhaul intervals.
Genuine Quality Ensures Perfect Fit: As a genuine Cat part, the 209-6000 is manufactured to Caterpillar's exact engineering specifications. It guarantees complete compatibility with your Cat equipment in terms of dimensions, thread interfaces (e.g., M10 x 1.5 thread size), and filtration performance. This precise fit ensures easy installation and eliminates risks of oil leaks or reduced filtration efficiency due to improper specifications.
Long Service Life, Optimizing Operational Costs: High-quality filter media and structural design provide this filter element with a strong dirt-holding capacity. This means it can maintain effective filtration for a longer period under normal operating conditions, not only reducing replacement frequency but, more importantly, protecting expensive hydraulic components. This helps avoid unplanned downtime and costly repairs, significantly lowering the total cost of ownership in the long run.
Frequently Asked Questions and Maintenance Tips
Common concerns among equipment owners and managers regarding hydraulic filters usually focus on replacement timing, installation precautions, and failure identification.
Q: How often should the Cat 209-6000 filter screen assembly be replaced?
The replacement interval is not fixed and should be adjusted dynamically based on the equipment's specific working environment. While Caterpillar typically provides a recommended service interval (e.g., every 500 service hours), this is only a baseline. If the equipment operates for extended periods in extremely dusty environments like mines or construction sites, contaminant ingress is faster. The inspection interval should be shortened to every 300 hours, with forced replacement considered around 400 hours. Conversely, in clean, light-duty conditions, the interval can be appropriately extended. One of the most scientific methods for determination is monitoring the filter's pressure differential. When the pressure drop exceeds the specified limit (e.g., 0.35MPa), it indicates severe clogging, and the filter must be replaced immediately.
Q: What are the critical steps to follow when replacing the filter element?
Filter replacement is a key maintenance task. Always follow safety procedures:
Preparation: Park the equipment on level ground, shut down the engine, and wait at least 30 minutes for the hydraulic system to cool completely.
Safety Depressurization: Before disassembly, always open the hydraulic tank air bleed valve to release internal pressure and prevent the hazard of hot oil spray.
Clean Installation: After removing the old filter, inspect and clean the filter housing base. Before installing the new filter, apply a small amount of clean hydraulic oil to its sealing gasket for lubrication.
Proper Tightening: Use the correct tool to tighten the new filter to the specified torque (refer to the equipment manual, typically in the range of 30-40 N·m). Overtightening can damage the filter, while undertightening can cause leaks.
Post-Replacement Check: After installation, start the engine and let it idle. Operate all hydraulic functions repeatedly to purge air from the system. Finally, carefully check for any leaks around the filter connection.
Q: What are the signs of filter failure or improper maintenance on the equipment?
Decreased filter performance or failure directly impacts equipment performance. Watch for these signals:
Abnormal Operation: All hydraulic movements of equipment like excavators (e.g., digging, swinging, lifting) become slow, weak, or uneven.
System Noise: The hydraulic pump may produce abnormal noises due to poor oil suction or cavitation.
Abnormal Fluid: The hydraulic oil itself may appear unusually cloudy or degrade rapidly.
Increased Temperature: The operating temperature of the hydraulic system may rise abnormally.
When these symptoms occur, while investigating other potential causes, the condition of the hydraulic filter should be a priority check.
Conclusion
Choosing a genuine Cat 209-6000 filter screen assembly for your equipment is more than a simple part replacement; it's a long-term investment. By ensuring the cleanliness of the hydraulic system, it directly protects the most core and expensive components of your machine. It is key to achieving high availability, low failure rates, and maintaining long-term value for your equipment. Regular and proper replacement with high-quality filters is one of the most effective preventative maintenance measures any responsible equipment manager can take.
Source Genuine Parts, Protect Your Equipment
We supply confirmed genuine Cat 209-6000 filter screen assemblies and related parts, ensuring you receive reliable quality that perfectly matches your equipment. For price inquiries, stock availability, or more technical information, please feel free to contact us.
