I. Core Functions and Engine Protection Value

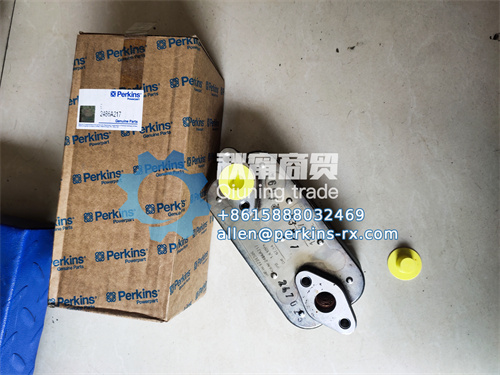

The Perkins oil cooler 2486A217, as a key temperature control component of the lubrication system, precisely regulates the oil temperature to achieve three core values:
High-efficiency heat dissipation and temperature control: Stabilize the engine oil temperature within the ideal range of 85-105℃ to prevent the decrease in oil viscosity and accelerated oxidation caused by high temperatures, and to avoid lubrication lag due to excessive oil thickness in low-temperature environments.
Anti-corrosion and long-lasting protection: The aluminum alloy material and sealing process resist the erosion of coolant, reduce the risk of oil emulsification, and extend the radiator's own service life to more than 15,000 hours.
All-condition adaptability: Compatible with the compact layout of Perkins engines, it achieves maximum heat dissipation efficiency in limited Spaces, especially suitable for scenarios such as tractors and forklifts where equipment volume is sensitive.
Ii. Key Technological Advantages
Material and structural optimization
High-strength aluminum alloy: The shell is made of ADC12 die-cast aluminum alloy, with a thermal conductivity of 180W/(m · K), which is three times more efficient in heat dissipation than cast iron radiators. The fin thickness is 0.3mm and the spacing is 2mm, increasing the heat dissipation area by 20% and quickly dissipating the heat of the engine oil.
Double-layer sealing design: The interior adopts nitrile rubber sealing rings, which can withstand high temperatures of 120℃ and chemical corrosion during cooling. The external joints are treated with vacuum brazing process, with a pressure-bearing capacity of up to 1.5bar, avoiding system failure caused by the mixture of engine oil and coolant.
Fluid dynamics design
Oil passage: The internal spiral flow channel is adopted, which extends the oil retention time by 30%, ensuring sufficient heat exchange with the coolant. The oil temperature control accuracy reaches ±2℃.
Coolant interface: Compatible with the original pipeline layout of Perkins engines. The 90° elbow design reduces flow resistance, increases coolant flow by 15%, and speeds up preheating by 20% in low-temperature environments.
Original factory-level compatibility and reliability
Strictly adhering to the design parameters of the Perkins engine cooling system, it works in coordination with the water pumps and thermostats of models such as 404D and 1104C, and can be installed without modification. Before leaving the factory, it undergoes a 100-hour continuous high-temperature test (oil temperature 120℃, coolant 85℃), with no decline in heat dissipation efficiency, ensuring the lubrication stability of the engine in harsh environments such as high altitudes and high temperatures.
Iii. Applicable Scenarios and Typical Cases
Agricultural machinery scene
Case: During the summer field operation of a Perkins 1104C tractor on a certain farm, the original radiator suffered from insufficient heat dissipation, causing the oil temperature to soar to 130℃ and frequent lubrication failures. After replacing with 2486A217, the oil temperature stabilized at around 100℃, the oil change cycle was extended from 300 hours to 600 hours, and the engine cylinder pulling failure decreased by 70%.
Value: It can cope with high-load and high-temperature environments in farmland, ensuring the reliability of lubrication during continuous operations such as plowing and harvesting, and reducing downtime losses caused by excessively high oil temperatures.
Generator set scene
Case: For the Perkins 404D backup generator set in a certain data center, the oil temperature rises slowly during low-frequency start-up, resulting in lubrication lag. The low-temperature heat conduction design of 2486A217 enables the engine oil to reach its optimal viscosity within 10 minutes after startup. Coupled with an automatic temperature-controlled fan, the response speed of the backup power supply is increased by 30%, ensuring no startup failures due to lubrication issues throughout the year.
Value: Ensure the reliability of emergency power supply in scenarios such as medical care and data centers, and prevent equipment damage caused by abnormal oil temperature.
Small-scale construction machinery scenarios
Case: A forklift driven by Perkins 1106A of a municipal company was operating in a cold storage (-20℃), and the ordinary radiator cracked due to the freezing of the coolant. The anti-freezing property and sealing process of 2486A217 aluminum alloy ensure no leakage even at -30 ℃. When used in conjunction with antifreeze, the oil temperature of the forklift hydraulic system remains stable at 95℃, and the operation efficiency is increased by 12%.
Iv. Installation and Maintenance Suggestions
Installation specifications
Sealing check: Before installation, apply Perkins special sealant (P-0015) to the interface to ensure there is no leakage in the oil and coolant pipelines.
Pipeline layout: Keep the distance between the radiator and the engine block at least 5mm to prevent vibration and friction from damaging the radiator fins. Use the original factory specification (inner diameter 16mm) for the coolant hose to reduce flow resistance.
Daily maintenance
Appearance cleaning: Blow off the dust on the outside of the heat sink with compressed air every 50 hours (especially in dusty environments), and rinse the heat sink fins with a neutral cleaner (PH 7-8) every 200 hours to restore the heat dissipation efficiency.
Temperature monitoring: Observe the oil temperature through the dashboard. When it abnormally rises, check whether the radiator fan, coolant level and radiator surface are clogged.
Response to Extreme environments
High temperature and high load: It is recommended to install a deflector during summer operation to guide the airflow to concentrate through the radiator. When the oil temperature remains above 110℃, check the flow rate of the coolant pump.
In extremely cold regions: Add Perkins special antifreeze (freezing point -40 ℃) in winter. Before stopping the machine, let it idle for 5 minutes to preheat the engine oil to prevent freezing inside the radiator during cold starts.
V. Quality Assurance and Purchasing Guide
Perkins strictly adheres to the ISO 16949 quality management system, and 2486A217 has passed triple tests:
Pressure resistance test: No leakage after withstanding a continuous pressure of 2bar for 30 minutes, far exceeding the normal working pressure of the engine (0.8-1.2bar).
Salt spray test: No corrosion in a 48-hour salt spray environment, suitable for high-humidity and high-salt scenarios such as coastal areas and chemical plants.
Thermal cycling test: No deformation after 500 cycles of alternating hot and cold temperatures from -40℃ to 120℃, ensuring long-term stability during use.
Users can search for compatible models by entering the part number through the Perkins official accessories platform (Perkins Parts Universe), and identify the anti-counterfeiting label "Perkins Genuine Parts" to avoid heat dissipation failure caused by size deviation or material defect of non-original factory radiators.
Vi. Cost-benefit Analysis
Choosing the 2486A217 oil radiator can achieve:
Efficiency improvement: Stabilizing the oil temperature enhances the lubrication performance of the engine oil by 15%, making the engine power output more stable and increasing the operation efficiency by 8% to 10%.
Reduced maintenance costs: The frequency of oil replacement due to high-temperature oxidation is decreased, and the annual maintenance cost of the lubrication system is reduced by 25%, avoiding major engine overhauls caused by radiator failures.
Equipment preservation value: The original factory quality guarantee ensures the long-term reliability of the cooling system. For second-hand equipment, due to the good condition of the engine, the residual value increases by 10% to 15%.
Vii. Contact Information
If you need a list of compatible models, installation manuals or bulk purchase quotations, please feel free to contact us through the following methods: Service Supply and Sales Center of Ningbo Qiuning Trading Co., LTD
Our company offers a wide range of engine assemblies and accessories of different brands and models
If interested, you can directly add my contact information: +86 15888032469
Or email me at allen@perkins-rx.com
Note the model or serial number for faster processing and more favorable prices
We offer global logistics and distribution services, providing genuine products. We support online ordering and ensure a response to customer demands within 72 hours.
