I. Core Functions and Engine Protection Value

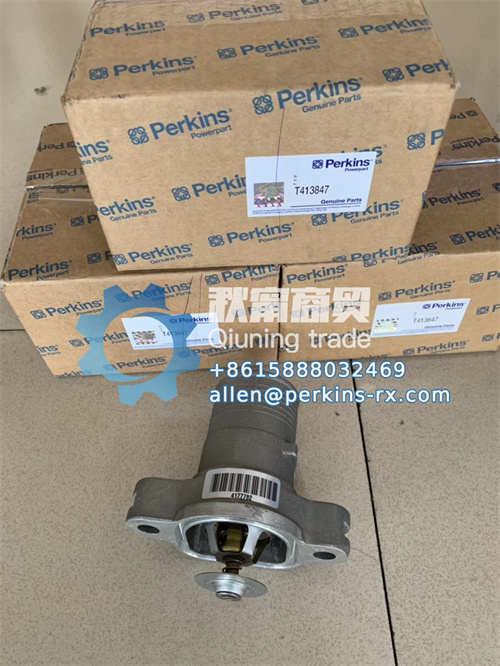

The Perkins thermostat T413847 serves as the intelligent temperature control core of the cooling system. By precisely adjusting the coolant circulation path, it achieves three core values
Precise water temperature control: When the engine starts, the large circulation is turned off to quickly heat up to the optimal working temperature (above 85℃), reducing low-temperature wear. When the load is high, start the large circulation to stabilize the water temperature within 105℃, avoid the risk of "boiling over", and improve the fuel combustion efficiency by 5% to 8%.
System energy-saving protection: Through intelligent switching of "small circulation + large circulation", the ineffective power consumption of the water pump and fan is reduced. The warm-up time in low-temperature environments is shortened by 30%, and the heat dissipation efficiency is increased by 20% in high-temperature environments, extending the service life of the coolant, water pump and cylinder block.
All-condition adaptability: It provides stable temperature control response for the seasonal temperature differences of agricultural machinery, the heavy load and high temperature of construction machinery, and the low-frequency start-up of generator sets, ensuring that the engine can quickly enter the optimal operating state in an environment ranging from -30 ℃ to 50℃.
Ii. Key Technological Advantages
Material and structural optimization
Main material: Cast from HPb59-1 brass, with a thermal conductivity of 110W/(m · K), its corrosion resistance is 40% higher than that of ordinary cast iron, and it can withstand the long-term erosion of ethylene glycol and preservatives in the coolant.
Valve assembly: The valve core is made of 304 stainless steel and treated with a Teflon coating on the surface, reducing the friction coefficient to 0.08 and increasing the response sensitivity by 25%. This prevents valve jamming caused by scale or rust and ensures a temperature control accuracy of ±1℃.
Intelligent response design
Paraffin sensing component: Equipped with high-purity paraffin mixture, it starts to expand at 82℃ and fully initiates large circulation at 95℃. The temperature sensing error is ≤±0.5℃, and its response speed is 15 seconds faster than that of ordinary thermostats, promptly meeting the heat dissipation requirements when the load suddenly changes.
Bypass valve synchronous control: The small circulation channel adopts a conical surface seal design. When closed, the leakage is ≤50mL/min, ensuring that the coolant centrally heats the engine at low temperatures and avoiding heat waste.
Original factory-level compatibility and reliability
Strictly adhering to the design parameters of Perkins engine cooling systems, it is fully compatible with the water pumps, radiators, and cylinder block water jackets of models such as 404D and 1104C, and can be installed without any modification. Before leaving the factory, it undergoes a 1000-hour cold and hot cycle test (-40℃ to 120℃), with a valve opening and closing life of over 100,000 times, ensuring long-term stability during use.
Iii. Applicable Scenarios and Typical Cases
Agricultural machinery scene
Case: During the operation of a Perkins 1104C tractor on a certain farm in spring and autumn, the original thermostat caused water temperature fluctuations due to a large temperature difference, resulting in a 10% increase in fuel consumption. After replacing with T413847, the water temperature stabilized at 95℃, the warm-up time was shortened to 5 minutes, 0.5 liters of fuel was saved per mu, and the annual cost decreased by 1,500 US dollars.
Value: Rapid heating reduces the cold grinding loss of the engine, ADAPTS to the large temperature difference between day and night in farmland, and ensures the continuous operation efficiency of sowing and harvesting equipment.
Industrial power generation scenarios
Case: Due to the failure of the thermostat, the water temperature of the Perkins 404D backup generator set in a certain data center was too high after winter startup, and the backup power supply frequently shut down. The low-temperature response design of T413847 enables the engine to reach the optimal water temperature within 3 minutes in an environment of -15 ℃. Coupled with an automatic cooling fan, the annual failure rate has been reduced from 4 to 0, ensuring stable power supply for medical equipment.
Value: Precise temperature control prevents the coolant from overheating and vaporizing, ensures the insulation performance of the generator coil, and enhances the emergency reliability of the backup power supply.
Construction machinery scene
Case: The Perkins 1106A loader at a certain construction site has been operating under heavy load for a long time. The valve of the original thermostat has worn out, causing the water temperature to get out of control. It needs to be disassembled and maintained every month. The stainless steel wear-resistant valve core of T413847 extends the maintenance cycle to 1200 hours, keeps the water temperature stable at 102℃ during high-temperature operation, increases the response speed of the hydraulic system by 10%, and reduces equipment downtime by 50%.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning requirements: Before installation, flush the water channels with Perkins special coolant cleaner (P-0013) to remove scale and rust, and ensure that the sealing surface of the thermostat seat is free of impurities.
Sealing treatment: Use original factory gaskets (such as T413848) or silicon-based sealants, and control the tightening torque at 15±2N · m to prevent temperature control failure caused by leakage.
Direction confirmation: The "OPEN" mark on the thermostat should face the radiator to ensure the correct connection of the large circulation channel.
Daily maintenance
Water temperature monitoring: Observe the water temperature in real time through the dashboard. When there is an abnormal fluctuation (> 10℃/ minute), check whether the thermostat valve is stuck.
Coolant maintenance: Check the freezing point and pH value of the coolant every 2000 hours (it is recommended to maintain them between 7.5 and 8.5). Replace the thermostat simultaneously when they deteriorate to prevent acidic corrosion of the valves.
Response to Extreme environments
In extremely cold regions: Add Perkins long-lasting antifreeze (freezing point -40 ℃) in winter. Idle for 5 minutes before shutting down to prevent ice formation inside the thermostat.
High temperature and high load: During summer operation, regularly clean the dust accumulated on the radiator to ensure the heat dissipation efficiency of the large circulation channel. When the water temperature remains above 110℃ continuously, check the opening stroke of the thermostat (normal ≥8mm).
V. Quality Assurance and Purchasing Guide
Perkins strictly adheres to the ISO 20653 protection level standard, and T413847 has passed triple tests:
Pressure resistance test: No leakage after withstanding 1.5bar coolant pressure for 30 minutes, far exceeding the normal working pressure of the engine (0.8-1.2bar).
Life test: Simulate 100,000 cold and hot cycles of the engine. The valve wear is ≤0.1mm, and the response delay is < 5 seconds.
Compatibility certification: Perfectly matched with the diameter of the water pump impeller and the thickness of the radiator core of Perkins engines, avoiding the imbalance of the cooling system caused by non-original factory thermostats.
Users can search for compatible models by entering the part number through the Perkins official Parts platform (Perkins Parts Universe), and recognize the anti-counterfeiting label "Perkins Genuine Parts" to ensure the genuine product channel.
Vi. Cost-benefit Analysis
Choosing the T413847 thermostat can achieve:
Efficiency improvement: Stabilizing water temperature increases the combustion efficiency of the engine by 3% to 5%, speeds up the lifting speed of the loader by 8%, and boosts the tillage efficiency of the tractor by 10%.
Reduced maintenance costs: The anti-corrosion design reduces the frequency of replacement, lowering the annual maintenance cost of the cooling system by 30% and avoiding major faults such as cylinder pulling and cylinder flushing caused by temperature control failure.
Equipment value preservation: The original factory quality guarantee ensures that the engine operates at an ideal temperature for a long time. Second-hand equipment, due to the good condition of its core components, has an 8% to 12% increase in residual value.
