I. Core Functions and Engine Performance Protection

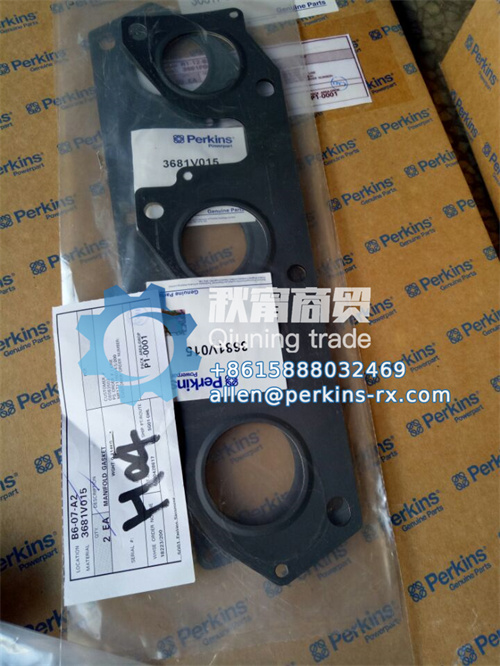

Perkins exhaust pipe gasket 3681V015, as a key sealing component of the exhaust system, achieves three core values through precise material design and structural optimization:
High-efficiency sealing and leak prevention: A high-temperature resistant sealing barrier is formed between the exhaust manifold and the exhaust pipe to prevent the leakage of high-temperature exhaust gas (up to 550℃), avoiding engine power attenuation (about 5%-8%) and abnormal vibration caused by leakage, and ensuring the stability of the exhaust system pressure.
Anti-vibration, temperature resistance and stability: It can adapt to the high-frequency vibration and sudden temperature changes (-40℃ to 500℃) during engine operation, reduce the fatigue damage of gaskets, and is especially suitable for the bumpy road conditions of agricultural machinery and the heavy-load vibration scenarios of construction machinery.
Emission compliance guarantee: Strict sealing performance reduces the escape of untreated exhaust gas. Combined with the original factory exhaust system, it ensures that emissions meet environmental protection standards such as National III/Stage IIIA, avoiding the risk of excessive emissions due to gas leakage.
Ii. Key Technological Advantages
Materials Science and High-Temperature Resistant Design
Composite material formula: It is made by pressing expanded graphite and metal skeleton together. The graphite layer can withstand high temperatures up to 600℃, and its ablation resistance is three times better than that of ordinary asbestos gaskets. The metal frame (304 stainless steel) enhances the tensile strength (180MPa), preventing the gasket from tearing under the impact of high-pressure exhaust gas, and extending the service life to over 12,000 hours.
Surface treatment process: The gasket surface is coated with a high-temperature resistant silicone coating, reducing the friction coefficient to 0.12, which reduces the resistance during installation and simultaneously enhances the resistance to carbon deposits and sulfide erosion, making it suitable for high-sulfur fuel environments.
Structural optimization and precise adaptation
Corrugated sealing edge: It adopts a 3-layer corrugated structure design, increasing the sealing contact area by 15%. Combined with the bolt pre-tightening force (suggested torque 25-30N · m), the exhaust pressure is evenly dispersed (up to 1.5bar), avoiding cracks caused by local stress concentration.
Precise matching of hole diameters: The position tolerance of the bolt holes is controlled within ±0.15mm, perfectly aligning with the screw holes of the Perkins engine exhaust manifold and exhaust pipe. Installation can be carried out without additional trimming, ensuring a sealing surface fit of over 98%.
All-condition adaptability
In response to the differentiated demands of various scenarios, 3681V015 gaskets have passed:
High-temperature environment: The low thermal conductivity of graphite material (10W/(m · K)) effectively blocks the heat transfer of exhaust gas, protecting the pipelines and components inside the engine compartment.
High-vibration working conditions: The elastic deformation capacity of the metal frame can absorb over 80% of the vibration energy, reducing the relative displacement between the gasket and the exhaust manifold. It is suitable for high-frequency vibration equipment such as excavators and loaders.
Iii. Applicable Scenarios and Typical Cases
Agricultural machinery scene
Case: When a Perkins 1104C tractor was operating in the field on a certain farm, the original exhaust pipe gasket leaked due to the bumpy road surface, resulting in a significant decrease in engine power and an increase in exhaust noise. After replacing with 3681V015, the corrugated structure effectively absorbs vibration, and the air leakage phenomenon disappears. The engine power stability during farming increases by 10%, and the annual fuel consumption is reduced by approximately 300 liters.
Value: The anti-vibration design is designed to address uneven road conditions in farmland, ensuring the sealing of the exhaust system and preventing power loss from affecting operational efficiency.
Construction machinery scene
Case: At a certain construction site, the Perkins 1106A loader was operating under high load, and the high-temperature exhaust gas caused the original gasket to be burned. It needs to be shut down for replacement every month. The graphite composite material of 3681V015 can withstand a high temperature of 550℃, the maintenance cycle is extended to 1000 hours, the equipment downtime is reduced by 50%, and the hydraulic system efficiency is improved by 12% due to the stable engine power.
Value: The high-temperature resistant design is suitable for the long-term heavy load of construction machinery, reducing maintenance frequency and ensuring continuous construction of infrastructure projects.
Power generation equipment scene
Case: The Perkins 404D backup generator set in a certain data center failed to meet the emission standards due to the aging and leakage of the exhaust pipe gasket, which affected the compliance of the backup power supply. After replacing with 3681V015, the sealing performance ensures that all exhaust gas passes through the treatment device, and the emission data is stable and up to standard. The environmental reliability of the backup power supply has been enhanced to 99%.
Value: The strict sealing design ensures compliance with emissions, making it suitable for scenarios with extremely high environmental protection requirements such as medical and data centers.
Iv. Installation and Maintenance Suggestions
Installation specifications
Surface cleaning: Before installation, use Perkins' dedicated cleaner (P-0014) to clean the exhaust manifold and the sealing surface of the exhaust pipe, remove carbon deposits, rust and oil stains, and ensure that the gasket is closely attached to the contact surface.
Bolt tightening: Use the diagonal step-by-step tightening method (in two steps: 50%→100% torque), and the final torque should be in accordance with the original factory standard (28±2N · m) to prevent the gasket from being skewed due to uneven force.
Old parts inspection: When replacing, check whether the interface between the exhaust manifold and the exhaust pipe is deformed (if the flatness error is greater than 0.2mm, it needs to be corrected) to avoid affecting the sealing effect due to interface defects.
Daily maintenance
Visual inspection: During each maintenance, observe whether there are black exhaust gas traces or metal erosion spots around the gasket. If any abnormalities are found, promptly investigate and eliminate them.
Vibration monitoring: Under high-vibration conditions, check the tightness of the bolts every 500 hours to prevent bolt loosening and gasket displacement caused by vibration.
Response to Extreme environments
High-sulfur fuel scenarios: Regularly (every 1000 hours) use Perkins fuel additive (P-0035) to neutralize sulfides and reduce the corrosion of gaskets by acidic substances in exhaust gases.
Low-temperature start-up scenario: Preheat the engine to above 60℃ before starting in northern winter to prevent the gasket from hardening and cracking due to exhaust condensation water in the cold state.
V. Quality Assurance and Purchasing Guide
Perkins strictly implements the ISO 9001 quality management system. The 3681V015 gasket has passed triple tests:
High-temperature resistance test: After being exposed to a high-temperature environment of 600℃ for 2 hours continuously, the gasket shows no carbonization or cracking, and the sealing performance retention rate is ≥95%.
Pressure resistance test: Withstands 2bar exhaust pressure for 30 minutes, with leakage ≤10mL/min, far exceeding the normal operating pressure of the engine (0.8-1.2bar).
Compatibility certification: Fully matched with the exhaust manifold material (cast iron/aluminum alloy) of Perkins engines, avoiding gasket failure caused by electrochemical corrosion.
Users can search for compatible models through the Perkins official Parts platform (Perkins Parts Universe) by entering the part number "3681V015" and identifying the anti-counterfeiting label "Perkins Genuine Parts" to ensure the genuine product channel.
Vi. Cost-benefit Analysis
Choosing 3681V015 exhaust pipe gasket can achieve:
Efficiency improvement: Stable sealing reduces power loss, the engine output power is more stable, the loader's handling efficiency is increased by 8%, and the tractor's climbing ability is enhanced by 15%.
Reduced maintenance costs: The long-life design reduces the frequency of replacement, lowering the annual procurement cost of seals by 40% and avoiding exhaust system maintenance costs caused by air leakage.
Compliance assurance: Strict sealing performance helps users meet environmental protection regulations, avoid the risk of fines for excessive emissions, and ensure the normal operation of equipment.
