I. Core Functions and the Value of the Cooling System

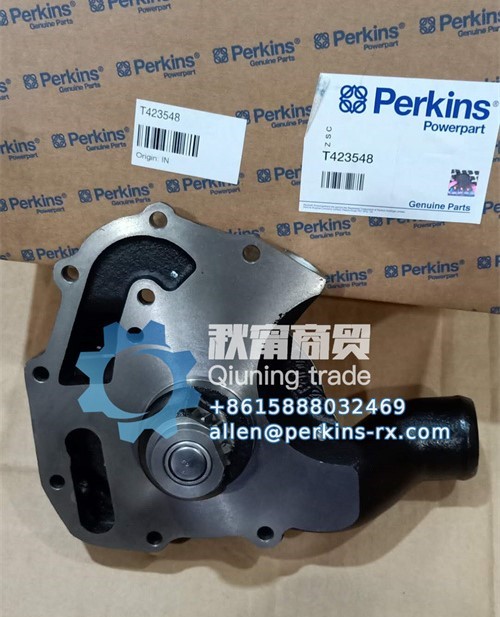

Perkins water pump T423548, as the power core of the engine cooling system, realizes three core values through "efficient circulation + durable design"
Precise temperature control protection: It pushes the coolant through the cylinder block and cylinder head at a stable flow rate (up to 50L/min), keeping the water temperature within the ideal range (85-105℃), preventing high-temperature "boiling over" or low-temperature wear, and improving engine efficiency by 5%-8%.
All-condition reliability: Capable of starting at -40 ℃ and operating at 120℃, resistant to vibration and corrosion, suitable for the bumpy road conditions of agricultural machinery, the heavy-load environment of construction machinery, and the backup scenarios of generator sets.
System-level compatibility: Deeply matched with the water jackets, radiators and thermostats of Perkins engines, it can be installed without modification, ensuring the coordinated operation of the cooling system and reducing the risk of faults such as leakage and cavitation.
Ii. Key Technological Advantages
Materials Science and Structural Strengthening
Shell material: Made of A356 cast aluminum alloy (containing 0.3% magnesium), it undergoes T6 heat treatment, with a tensile strength of 260MPa. Its corrosion resistance is 40% higher than that of cast iron, effectively resisting the long-term erosion of ethylene glycol and preservatives in the coolant.
Bearings and Seals
The shaft core adopts ceramic ball bearings (hardness HRA 85), which enhances the wear resistance by 50% and reduces the rotational resistance by 30%, making it suitable for high-speed working conditions (above 3000rpm).
The dual sealing design (skeleton oil seal + O-ring) ensures a leakage of no more than 5mL/min at a pressure of 1.5bar, preventing coolant from seeping into the engine lubrication system.
Fluid dynamics optimization
Impeller design: 7-blade backward-curved impeller (diameter φ85mm), with a smooth flow and head curve. Compared with ordinary impellers, its efficiency is increased by 12%, and the cavitation phenomenon is reduced (the occurrence rate of bubbles is reduced by 60%).
Inlet and outlet matching: It adopts a 90° right-angle interface design, which is compatible with the compact layout of Perkins engines. The flow resistance is reduced by 15%, the coolant circulation speed is increased by 20%, and the high-temperature response time is shortened to 5 minutes.
Original factory-level compatibility and installation convenience
Precise dimensions: The tolerance of the bolt hole spacing is controlled within ±0.1mm, perfectly aligning with the engine water pump base. When paired with original factory gaskets (such as T423549), the installation time is reduced by 50% compared to non-original factory water pumps.
Dynamic balance calibration: The impeller undergoes dynamic balance testing (residual unbalance ≤10g · cm), with a vibration amplitude of less than 5μm during operation. This reduces the bearing load and extends the service life to over 15,000 hours.
Iii. Applicable Scenarios and Typical Cases
Agricultural machinery scene
Case: During the operation of the Perkins 1104C tractor on a certain farm in the high temperature of summer, the flow rate of the raw water pump decreased due to the corrosion of the impeller, and the engine frequently overheated and shut down. After replacing with T423548, the anti-corrosion ability of the aluminum alloy shell has improved the cleanliness of the coolant, the water temperature has stabilized at 95℃, the farming efficiency has increased by 15%, and the annual downtime due to faults has been reduced by 200 hours.
Value: The anti-corrosion design addresses mineral deposits in farmland coolant, ensuring continuous operation of sowing and harvesting equipment during hot seasons.
Construction machinery scene
Case: At a certain construction site, the Perkins 1106A loader has been operating at high load for a long time. Due to vibration, the bearing of the raw water pump has worn out and needs to be replaced every month. The anti-vibration performance of the ceramic bearings of T423548 extends the maintenance cycle to 1200 hours. The failure rate of the hydraulic system drops by 30% due to the stable water temperature, and the equipment downtime is reduced by 40%.
Value: Strengthen the bearing design to adapt to the high-frequency vibration of construction machinery, ensure the stable operation of the cooling system under heavy load conditions, and reduce maintenance costs.
Power generation equipment scene
Case: The reliability of the backup power supply of the Perkins 404D backup generator set in a certain data center was affected due to the leakage of coolant caused by the failure of the seal when the water pump started at low temperature. The low-temperature resistant sealing material of T423548 remains elastic at -30 ℃, with the start-up success rate increased to 100%, ensuring the power continuity of medical equipment and data storage.
Value: The wide-temperature-range sealed design ADAPTS to the extreme environmental requirements of backup power supplies, ensuring the stability of heat dissipation during emergency power supply.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning requirements: Before installation, flush the waterways with Perkins' dedicated cleaner (P-0013) to remove scale and rust, ensuring that the sealing surface of the water pump base is free of impurities.
Sealing treatment: Use the original factory gasket and apply silicon-based sealant (0.3mm thick). Tighten the bolts in two steps diagonally (15N · m for the first time and 25N · m for the second time) to prevent stress concentration and leakage.
Impeller inspection: After installation, manually rotate the impeller to ensure there is no jamming or abnormal noise, and the rotational resistance is uniform.
Daily maintenance
Leakage monitoring: During each maintenance, observe whether there are any traces of coolant at the joints of the water pump housing. If leakage is found, immediately check the condition of the sealing gasket or bearing.
Water temperature monitoring: Check the water temperature in real time through the dashboard. When there is an abnormal fluctuation (> 10℃/ minute), check whether the impeller is worn or the bearing is loose.
Response to Extreme environments
In areas with excessive water scale: Add Perkins coolant softener (P-0016) every 2000 hours to reduce the concentration of calcium and magnesium ions and decrease the scaling of the impeller.
In extremely cold regions: Use coolant with a freezing point of -40 ℃ in winter. Before shutting down, let the machine idle for 5 minutes to prevent the water pump from freezing inside and damaging the impeller.
V. Quality Assurance and Purchasing Guide
Perkins strictly adheres to the ISO 20653 protection grade standard, and the T423548 water pump has passed triple tests:
Pressure resistance test: No leakage after withstanding a continuous pressure of 2bar for 30 minutes, far exceeding the normal working pressure of the engine (0.8-1.2bar).
Life test: Simulate 100,000 cold and hot cycles (-40℃ to 120℃), the wear of the bearing is ≤0.05mm, and the sealing parts show no aging or cracking.
Compatibility certification: Fully compatible with the coolant type of Perkins engines (ethylene glycol-based/propylene glycol based), avoiding material corrosion caused by chemical reactions.
Users can search for compatible models through the Perkins official Parts platform (Perkins Parts Universe) by entering the part number "T423548" and identifying the anti-counterfeiting label "Perkins Genuine Parts" to ensure the genuine product channel.
Vi. Cost-benefit Analysis
Choosing the T423548 water pump can achieve:
Efficiency improvement: Stabilizing water temperature increases the engine's combustion efficiency by 3%, improves fuel economy by 2% to 4%, and makes the power response during equipment operation more sensitive.
Reduced maintenance costs: The long-life design reduces the frequency of replacement, lowering the annual maintenance cost of the cooling system by 35% and avoiding major engine overhauls caused by water pump failures.
Equipment preservation value: The original factory quality guarantee ensures the long-term reliability of the cooling system. As second-hand equipment has no history of overheating damage, its residual value increases by 8% to 12%.
Vii. Contact Information
If you need a list of compatible models, installation manuals or bulk purchase quotations, please feel free to contact us through the following methods: Service Supply and Sales Center of Ningbo Qiuning Trading Co., LTD
Our company offers a wide range of engine assemblies and accessories of different brands and models
If interested, you can directly add my contact information: +86 15888032469
Or email me at allen@perkins-rx.com
Note the model or serial number for faster processing and more favorable prices
We offer global logistics and distribution services, providing genuine products. We support online ordering and ensure a response to customer demands within 72 hours.
