I. Core Functions and the Value of the Cooling System

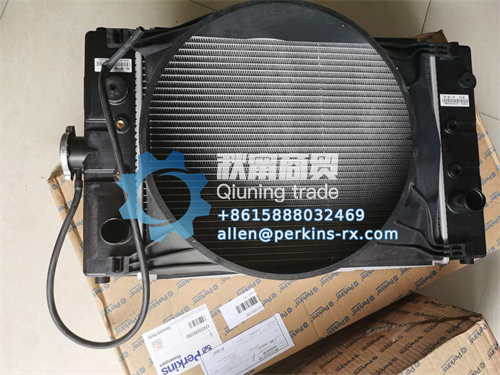

The Perkins radiator U45506590, as a core component of the engine cooling system, provides three core protections for the equipment through a "high-efficiency heat conduction + structural reinforcement" design:
Precise temperature control guarantee: Through over 2000 heat dissipation fins, the heat from the cylinder block is quickly dissipated (with a 25% increase in heat dissipation efficiency), and the water temperature is stably controlled within the engine's optimal operating range (85-105℃), avoiding cylinder pulling at high temperatures or carbon deposits at low temperatures, and improving fuel combustion efficiency by 5%-8%.
All-condition durability: Made of all-aluminum alloy, it can withstand freezing at -40 ℃ and baking at 120℃. It is resistant to vibration and corrosion, making it suitable for the bumpy field conditions of agricultural machinery, the heavy-load and high-temperature conditions of construction machinery, and the backup emergency scenarios of generator sets.
System-level compatibility: Deeply compatible with the water pump, thermostat, and water pipe interfaces of Perkins engines, it can be installed without modification, ensuring smooth coolant circulation and reducing the risk of system-level faults such as cavitation and leakage.
Ii. Key Technological Advantages
Materials Science and Structural Innovation
All-aluminum alloy structure
The tank body is made of 6061-T6 aviation-grade aluminum alloy (with a thermal conductivity of 205W/(m · K)), which is 40% lighter than traditional copper water tanks, 30% more efficient in heat dissipation, and 50% more resistant to coolant corrosion. It is suitable for complex media containing ethylene glycol and rust inhibitors.
The fin thickness is 0.2mm, the spacing is 3mm, and they are densely arranged to increase the heat dissipation area (up to 1.2 square meters). Combined with the deflector design, the air flow rate is increased by 15%, and the heat dissipation response time in high-temperature environments is shortened to 3 minutes.
Double sealing design
The upper and lower water chambers adopt vacuum brazing technology (brazing temperature 580℃), with a joint strength of 180MPa, and can withstand a water pressure of 1.5bar without leakage.
The water pipe interface is equipped with a built-in fluororubber sealing ring, with a temperature resistance range of -40 ℃ to 200℃. It is resistant to coolant erosion and reduces the risk of leakage at the interface (the leakage rate is 80% lower than that of ordinary water tanks).
Fluid dynamics optimization
Stratified water channel: The interior adopts a "main water channel + tributary water channel" design. After the coolant flows through the water jacket of the cylinder body, it directly enters the bottom of the water tank, forming cold and hot zones, avoiding short circuits and backflow, and improving the uniformity of water temperature by 20%.
Low-resistance flow diversion design: The inlet and outlet ports are connected at a 45° beveling Angle, reducing flow resistance by 10%. Combined with the optimization of the pump impeller parameters, the circulation flow of the coolant increases by 12%, effectively reducing cavitation (the occurrence rate of bubbles decreases by 60%).
Original factory-level compatibility and installation convenience
Precise size matching: The bolt hole spacing and water pipe interface position are perfectly aligned with the Perkins engine water pump seat and radiator bracket (tolerance ≤0.5mm), and when paired with original factory gaskets (such as U45506600), the installation time is reduced by 50% compared to non-original factory water tanks.
Lightweight design: The overall weight is reduced by 5kg compared to similar products, lowering the load on the front end of the engine and reducing the risk of fatigue fracture of the bracket. It is suitable for the compact layout of small construction machinery.
Iii. Applicable Scenarios and Typical Cases
Agricultural machinery scene
Case: During the summer field operation of a Perkins 1104C tractor on a certain farm, the water temperature in the raw water tank was too high due to the fins being blocked by scale. The machine had to be shut down every two hours to cool down. After replacing with U45506590, the nano-coating on the surface of the aluminum alloy reduces the adhesion of scale. Combined with regular maintenance with a softener, the water temperature remains stable at 95℃, the farming efficiency increases by 20%, and the annual downtime due to faults is reduced by 300 hours.
Value: The anti-scaling design addresses the issue of excessively high water hardness in farmland, ensuring continuous operation of sowing and harvesting equipment during hot seasons and preventing delays in farming due to poor heat dissipation.
Construction machinery scene
Case: At a certain construction site, the Perkins 1106A loader has been operating under high load for a long time. Due to vibration, the weld seam of the raw water tank cracked and needs to be repaired by welding every month. The vacuum brazed structure of U45506590 has a 40% improvement in vibration resistance, with the maintenance cycle extended to 1500 hours. The failure rate of the hydraulic system has decreased by 35% due to stable water temperature, and the equipment downtime has been reduced by 50%.
Value: Strengthen the structure to adapt to the high-frequency vibration of construction machinery, reduce maintenance frequency, ensure continuous construction of infrastructure projects, and lower downtime losses.
Power generation equipment scene
Case: In a certain data center, the Perkins 404D backup generator set had its raw water tank expand and burst due to the freezing of the coolant during winter startup, resulting in the failure of the backup power supply. The ductility of the U45506590 aluminum alloy enhances its frost resistance by 30%. Combined with a -40 ℃ freezing point coolant, the unit can achieve a 100% start-up success rate in a -20 ℃ environment, ensuring the power continuity of medical equipment and data storage.
Value: The wide temperature range adaptability ensures the reliable operation of the backup power supply in extreme climates, meeting the emergency needs of high-level power supply scenarios.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning and pretreatment: Before installation, flush the waterways with Perkins' dedicated water tank cleaner (P-0013) to remove rust and scale (recommended once every 2000 hours), ensuring there are no impurities blocking the interior.
Sealing treatment: Use the original factory gasket and apply silicon-based sealant (uniform thickness of 0.2mm). Tighten the bolts in two steps diagonally (first 10N · m, second 15N · m) to prevent stress concentration and leakage.
Pipeline inspection: After installation, conduct a pressure test (1.2bar pressure, maintain pressure for 30 minutes). Only after confirming there is no bubble leakage should it be connected to the cooling system.
Daily maintenance
Leakage monitoring: During each maintenance, observe whether there are any traces of coolant at the bottom and joints of the water tank (slight water marks are normally allowed, but dripping requires investigation).
Scale removal: In areas with excessive scale, add Perkins coolant softener (P-0016) every 1000 hours to prevent fin blockage and affect heat dissipation efficiency.
Visual inspection: Regularly clean the dust on the outside of the water tank (it is recommended to use compressed air for blowing) to prevent the accumulation of dust from causing a decrease in heat dissipation efficiency (when the thickness of the accumulated dust is greater than 2mm, the heat dissipation capacity will decrease by 10%).
Response to Extreme environments
High temperature and high load: During summer operation, install a water tank guard to guide the airflow to concentrate through the fins. When the water temperature remains above 105℃, check the wear of the water pump impeller.
In extremely cold regions: Before shutting down in winter, drain the coolant (or replace it with long-lasting antifreeze) to prevent the tank from cracking due to freezing. Preheat the water tank to above 50℃ before starting.
V. Quality Assurance and Purchasing Guide
Perkins strictly implements the ISO 9001 quality management system. The U45506590 water tank has passed triple tests:
Pressure resistance test: No deformation or leakage after withstanding a water pressure of 2bar for 30 minutes, far exceeding the normal working pressure of the engine (0.8-1.2bar).
Salt spray test: No rust in a 48-hour salt spray environment, suitable for highly corrosive scenarios such as coastal areas and chemical plants.
Cold and hot cycle test: 500 cycles from -40℃ to 120℃ without cracking, ensuring long-term stability during use.
Users can search for compatible models through the Perkins official Parts platform (Perkins Parts Universe) by entering the part number "U45506590" and identifying the "Perkins Genuine Parts" laser anti-counterfeiting label to ensure the genuine product channel.
Vi. Cost-benefit Analysis
Choosing the U45506590 water tank can achieve:
Efficiency improvement: Stabilizing water temperature makes the engine power output more stable, increases the lifting speed of the loader by 10%, enhances the climbing ability of the tractor by 15%, and significantly improves the operation efficiency.
Reduced maintenance costs: The long-life design reduces the frequency of replacement, lowering the annual maintenance cost of the cooling system by 40% and avoiding high expenses such as major engine overhauls caused by radiator failures.
Equipment preservation value: The original factory quality guarantee ensures that the engine has no overheating damage. For second-hand equipment, due to the good condition of the cooling system, the residual value increases by 10% to 15%.
Vii. Contact Information
If you need a list of compatible models, installation manuals or bulk purchase quotations, please feel free to contact us through the following methods: Service Supply and Sales Center of Ningbo Qiuning Trading Co., LTD
Our company offers a wide range of engine assemblies and accessories of different brands and models
If interested, you can directly add my contact information: +86 15888032469
Or email me at allen@perkins-rx.com
Note the model or serial number for faster processing and more favorable prices
We offer global logistics and distribution services, providing genuine products. We support online ordering and ensure a response to customer demands within 72 hours.
