I. Core Functions and Value of the Gas Distribution System

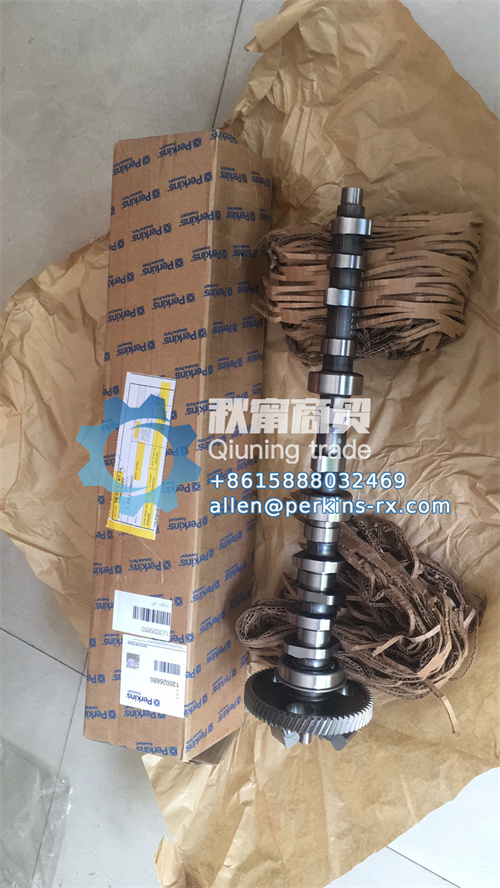

Perkins camshaft 120026880 serves as the "command center" of the engine's valve train system. By precisely controlling the timing of valve opening and closing, it achieves three core values:
Precise valve timing: The CAM profile is precisely designed to ensure a perfect match between the valve opening time, lift and engine speed, increasing fuel combustion efficiency by 5% to 8% and reducing power attenuation caused by valve timing deviation.
Anti-wear and long-term operation: It can withstand the high-frequency impact of the valve tstem (opening and closing more than 3,000 times per minute) and the cylinder block temperature of 120℃, reducing the wear of the CAM surface and extending the engine's trouble-free operation time by more than 25%.
All-condition adaptability: For the heavy-load vibration of construction machinery, the low-frequency start-up of generator sets, and the bumpy road conditions of agricultural machinery, it maintains the stability of CAM profiles, ensures the consistency of gas distribution under different loads, and reduces the risk of maintenance and shutdown.
Ii. Key Technological Advantages
Materials Science and Forging Technology
High-strength alloy base material: Forged from 42CrMoA alloy (containing 1.0%-1.3% chromium and 0.2%-0.3% molybdenum), after quenching and tempering treatment (hardness HB 280-320), the tensile strength reaches 900MPa, and the bending fatigue resistance is 40% higher than that of ordinary steel, suitable for the gas distribution requirements of high-frequency impact.
Precision CAM profile: Formed by a five-axis linkage machining center, the CAM lift error is ≤0.01mm, the base circle runout is ≤0.02mm, ensuring consistent valve opening height (deviation ≤0.05mm), and avoiding valve timing disorders caused by profile errors.
Surface strengthening and anti-wear design
Nitriding treatment technology: The working surface of the CAM undergoes ion nitriding (with a nitriding layer depth of 0.3-0.5mm), achieving a surface hardness of HV 900-1000. The resistance to valve tstem wear is enhanced by 50%, making it particularly suitable for fuel environments with a sulfur content greater than 0.5%.
Fillet optimization: The fillet radius of the CAM transition is increased to 1.5mm, reducing stress concentration (stress value drops by 30%), preventing the root of the CAM from breaking under high-frequency impact, and extending the service life to over 20,000 hours.
Original factory-level compatibility and synergy
Strictly follow the valve train system parameters of Perkins 1200/1500 series engines:
The fit clearance between the journal diameter and the bearing housing is controlled at 0.02-0.04mm to ensure stability during high-speed rotation (radial runout ≤0.01mm).
The CAM phase is precisely matched with the crankshaft timing gear (phase difference ≤0.5°), and it can be installed without additional adjustment, ensuring the coordination of fuel injection and valve timing and reducing power loss.
Iii. Applicable Scenarios and Typical Cases
Construction machinery scene
Case: A Perkins 1500 series excavator in a certain mine has been operating under heavy loads for a long time. Due to CAM wear, the original camshaft had insufficient valve opening, resulting in a 15% decrease in power. After replacing with 120026880, the valve timing accuracy was restored, the digging force increased by 10%, the response speed of the hydraulic system accelerated by 8%, and the monthly downtime for equipment maintenance was reduced by 6 hours.
Value: The anti-wear design is designed to withstand heavy load impacts, ensuring the continuous operation capacity of excavators under high-load conditions and reducing construction delays caused by gas distribution failure.
Generator set scene
Case: In a certain data center, the Perkins 1200 series standby generator set experienced poor valve closure due to camshaft wear, resulting in a 10% drop in cylinder pressure and idle vibration after startup. After replacing with 120026880, the cylinder pressure was restored to the standard value, the start-up response time was shortened to 3 seconds, and the fuel consumption was reduced by 5% during full-load operation, ensuring the stability of emergency power supply.
Value: Precise phase control ensures accurate gas distribution of the backup power supply during low-frequency startup, avoiding power supply fluctuations caused by jitter, and meeting high-reliability requirements in medical, data storage and other fields.
Agricultural machinery scene
Case: On a certain farm, the Perkins 1200 series tractors experienced frequent abnormal valve noises due to the wear of the camshaft bearings caused by the bumpy field conditions. The reinforced journal design of 120026880 extends the bearing life to 1,500 hours, ensures stable engine power output during operation, increases farming efficiency by 12%, and reduces annual maintenance costs by 2,000 yuan.
Value: The anti-vibration design is adapted to the bumpy road conditions of agricultural machinery, reducing the failure of the gas distribution system and ensuring continuous operation during the busy farming season.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning and pretreatment: Before installation, clean the journal and bearing housing with Perkins special cleaner (P-0012) to remove iron filings and oil stains, avoiding early wear caused by impurities.
Torque control: The bearing cover bolts should be tightened in three steps in the sequence from the middle to both ends (with a final torque of 35±2N · m) to ensure uniform force distribution on the journal and prevent deformation.
Phase calibration: Align the camshaft and crankshaft phases through the timing gear marks, with the deviation controlled within ±0.5°. If necessary, use a dedicated tool (such as a Perkins timing meter) for verification.
Daily maintenance
Abnormal noise monitoring: Regularly listen to the top of the engine (valve chamber area). If a high-frequency abnormal sound of "tap-tap" (abnormal valve sound) occurs, promptly check the gap between the CAM and tanner (normal ≤0.3mm).
Oil inspection: Test the iron content in the engine oil every 500 hours (check for CAM wear when it exceeds 30ppm) to prevent dry friction caused by poor lubrication.
Response to Extreme environments
High-sulfur fuel: Add Perkins anti-sulfur additive (P-0035) every 1000 hours to reduce the corrosion of the CAM surface by acidic substances;
Low-temperature start: Preheat the engine to 60℃ before starting in northern winter to avoid lubrication lag caused by high viscosity of the engine oil in a cold state and protect the contact surface between the CAM and the tappet.
V. Quality Assurance and Cost-effectiveness
The Perkins 120026880 camshaft has passed three rounds of original factory inspections
Material spectral analysis: Ensure that the alloy composition complies with ASTM A182 standard, with the deviation of chromium and molybdenum content ≤±0.1%, to guarantee the balance of strength and toughness;
Contour accuracy detection: The CAM lift and phase difference are calibrated by a three-coordinate measuring instrument, with an error of ≤0.01mm, which is 50% better than the industry standard.
Fatigue test: Simulate 200,000 CAM impacts, with wear ≤0.02mm, no cracks or deformations, ensuring long-term high-load stability.
The selection of this camshaft enables:
The engine valve train efficiency is increased by 8%, and the equipment operation efficiency is raised by 10% to 15%.
The maintenance cycle of the gas distribution system is extended by 30%, and the annual maintenance cost is reduced by 25% to 30%.
The residual value of second-hand equipment increases by 10% to 15% due to the good condition of its core components.
Vi. Contact Information
If you need a list of compatible models, installation manuals or purchase quotations, please feel free to contact: Service Supply and Sales Center of Ningbo Qiuning Trading Co., LTD
Our company offers a wide range of engine assemblies and accessories of different brands and models
If interested, you can directly add my contact information: +86 15888032469
Or email me at allen@perkins-rx.com
Note the model or serial number for faster processing and more favorable prices
We offer global logistics and distribution services, providing genuine products. We support online ordering and ensure a response to customer demands within 72 hours.
