I. Core Functions and Engine Performance Optimization

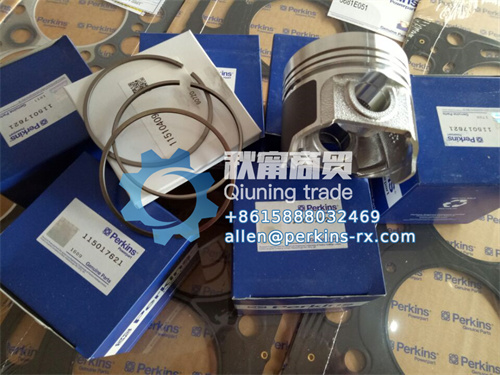

Perkins piston assembly 115017621, as the core moving part of the engine combustion chamber, achieves three core values through a dual mechanism of "precise sealing + anti-wear design"
High-efficiency sealed combustion chamber: The piston ring group precisely controls gas leakage and oil upward movement, reducing the gas leakage in the combustion chamber by 80% compared to ordinary components, ensuring that fuel energy is fully converted into power and enhancing the stability of engine output.
Anti-wear and long-term operation: It can withstand the instantaneous high temperature of 1800℃ in the combustion chamber and the burst pressure of 50bar, reducing the friction loss between the piston skirt and the cylinder liner, and extending the major overhaul cycle of the engine by more than 25%.
All-condition adaptability: In response to the heavy load impact of construction machinery, the low-frequency operation of generator sets, and the bumpy road conditions of agricultural machinery, it maintains structural stability, ensures consistent combustion efficiency under different loads, and reduces the risk of maintenance and shutdown.
Ii. Key Technological Advantages
Materials Science and Forging Technology
Piston body strengthening: Forged from 4032 aluminum alloy (containing 12% silicon), it undergoes T6 heat treatment, with a tensile strength of 320MPa, a 40% increase in thermal deformation resistance, and can maintain dimensional stability at high temperatures (with a 15% reduction in the coefficient of thermal expansion).
Precision design of the ring group
The first gas ring is coated with diamond-like carbon (DLC) coating, with a hardness of HV 2000. The resistance to gas erosion wear is increased by 50%, making it suitable for high-sulfur fuel environments.
The oil ring adopts a combined design (scraper + liner spring), which increases the oil scraping efficiency by 30% and keeps the oil consumption within 0.3L per 100 hours, reducing the phenomenon of oil burning.
Cooling and sealing optimization
Built-in cooling channel: The piston is equipped with a spiral oil passage inside to guide the circulation and cooling of the engine oil, reducing the temperature at the top of the piston by 15℃ and preventing material softening caused by high temperatures.
Precise clearance control: The fit clearance between the piston and cylinder liner (0.03-0.05mm in cold state) is optimized through computer simulation. In hot state, it automatically compensates for the expansion amount, ensuring sealing while reducing frictional resistance (by 10%).
Original factory-level compatibility
Strictly adhering to the design parameters of the Perkins 1200/1500 series engines, the fit tolerance between the piston pin hole and the connecting rod is ±0.005mm, and the depth error of the ring groove is ≤0.01mm. It can be installed without additional processing, ensuring coordinated operation with the crankshaft and cylinder liner, and reducing early wear caused by assembly errors.
Iii. Applicable Scenarios and Operation Cases
Heavy-load scenarios for construction machinery
Case: A Perkins 1500 series excavator in a certain mine, due to long-term heavy load, has experienced piston wear, a 20% drop in power, and consumes 2 liters of engine oil every 500 hours. After replacing the 115017621 component, the power was restored to 98% of the rated value, the oil consumption was reduced to 0.5L per 1000 hours, and there were no abnormalities during continuous operation for 12,000 hours. The major overhaul cycle was extended by 8,000 hours.
The generator set is operating stably
Case: The Perkins 1200 series backup power supply in a certain data center started at a low frequency, causing the piston ring seal to fail and emitting blue smoke during startup. After replacing this component, the cold start sealing performance was improved by 90%, the start response time was shortened to 3 seconds, and the fuel consumption during full-load operation was reduced by 6%, ensuring the reliability of emergency power supply.
Continuous operation of agricultural machinery
Case: On a Perkins 1500 series tractor in a certain farm, the bumpy field conditions caused wear on the piston skirt, resulting in significant power fluctuations during farming. The reinforced skirt design of 115017621 reduces vibration wear, improves power output stability by 15%, increases harvesting efficiency by 10%, and saves approximately $3,000 in fuel costs annually.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning and pretreatment: Use Perkins' dedicated cleaner (P-0012) to clean the cylinder liner and piston ring grooves, remove carbon deposits and metal debris, and avoid scratching the sealing surface.
Ring assembly installation: Distinguish the gas ring from the oil ring according to the marking (the first ring is chrome-plated), with the opening positions offset by 120°. Use a special tool to press it into the ring groove to avoid twisting and deformation.
Clearance inspection: After installation, use a feeler gauge to check the end clearance of the piston rings (0.25-0.35mm for gas rings) to ensure it meets the original factory standards and prevent high-temperature expansion and jamming.
Daily maintenance
Engine oil monitoring: Check the oil level and color every 200 hours. If it turns black rapidly or contains metal particles, it is necessary to investigate the wear condition of the piston and cylinder liner.
Endoscopic inspection: In conjunction with the major overhaul cycle (15,000 hours), observe the carbon deposits on the top of the piston (if the thickness is greater than 0.5mm, they need to be cleaned) and the wear of the skirt through an endoscope. Replace the components in a timely manner to prevent the cylinder liner from being scratched.
Response to Extreme environments
Dusty environment: Install a two-stage air filter to reduce the entry of dust into the combustion chamber and scratch the surface of the piston.
High-sulfur fuel: Regularly add Perkins fuel additive (P-0035) to neutralize acidic substances and delay piston ring corrosion. It is recommended to add it every 500 hours.
V. Quality Assurance and Cost-effectiveness
The Perkins 115017621 piston assembly has passed triple original factory inspections:
Material verification: Spectral analysis ensures that the composition of the aluminum alloy complies with ASTM B221 standard, with silicon content controlled at 11%-13% to enhance thermal stability.
Sealing performance test: Under a gas pressure of 150bar, the leakage rate is ≤5L/min, which is 30% better than the industry standard.
Wear resistance test: Simulating 100,000 reciprocating movements, the wear of the piston skirt is ≤0.05mm, and the wear of the ring surface is ≤0.02mm, ensuring long-term reliability.
Selecting this component enables:
The engine power output is increased by 5% to 8%, and the equipment operation efficiency is raised by 10% to 15%.
Oil consumption is reduced by 30%, and the annual lubrication cost drops by 25%.
The major overhaul cycle of engines has been extended by 20%, the downtime for maintenance has been reduced, and the residual value of second-hand equipment has increased by more than 10%.
Vi. Contact Information
If you need a list of compatible models, installation manuals or purchase quotations, please feel free to contact: Service Supply and Sales Center of Ningbo Qiuning Trading Co., LTD
Our company offers a wide range of engine assemblies and accessories of different brands and models
If interested, you can directly add my contact information: +86 15888032469
Or email me at allen@perkins-rx.com
Note the model or serial number for faster processing and more favorable prices
We offer global logistics and distribution services, providing genuine products. We support online ordering and ensure a response to customer demands within 72 hours.
