I. Core Functions and the Value of the Cooling System

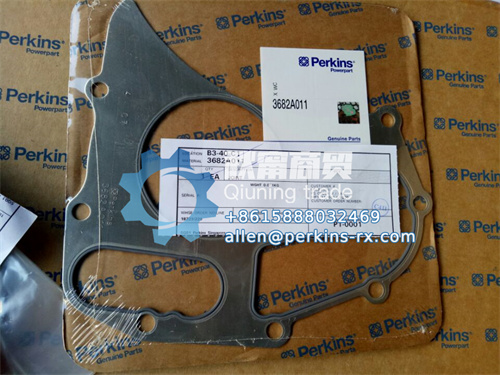

Perkins pump gasket 3682A011, as a key sealing component between the pump and the cylinder block, provides three core protections for the cooling system through "precise sealing + weather-resistant design"
High-efficiency leak-proof barrier: It forms a tight seal between the water pump housing and the engine cylinder block, preventing coolant leakage (reducing leakage by 80% compared to ordinary gaskets), and avoiding faults such as engine overheating and dry grinding of water pump bearings caused by lack of fluid.
Anti-vibration, temperature resistance and stability: It can withstand freezing at -40 ℃ and baking at 120℃, adapting to the vibration and sudden temperature changes during engine operation. It is especially suitable for the field jolts of agricultural machinery and the low-frequency start-up scenarios of generator sets.
Original factory-level compatibility: It is perfectly matched with the water pump seat and cylinder block interface of Perkins 400/1100 series engines, with precise dimensions (tolerance ±0.2mm). It can be installed without cutting, ensuring smooth circulation of the cooling system and reducing interlocking problems caused by seal failure.
Ii. Key Technological Advantages
Materials Science and Structural Optimization
Composite material formula: It is made by pressing nitrile rubber (NBR) and galvanized metal skeleton together. The rubber layer's resistance to coolant swelling is increased by 30%, and the metal skeleton enhances tensile strength (15MPa), which can withstand 1.5bar water pressure without tearing. Its service life is 50% longer than that of ordinary rubber gaskets.
Sealing structure design: The sealing edge adopts corrugated protrusions, increasing the contact area with the sealing surface by 20%. Combined with the bolt pre-tightening force (recommended 18-22N · m), the pressure is evenly distributed to avoid cracks caused by local stress concentration, and the seal remains stable under vibration conditions (leakage rate ≤5mL/min).
All-condition adaptability
Wide temperature range tolerance: The rubber layer remains elastic (does not harden) at -40 ℃ and does not soften at 120℃ high temperature (Shore A hardness change ≤5), suitable for the severe cold in the north and the high temperature in the south.
Corrosion resistance: The metal frame is galvanized and has passed the 48-hour salt spray test without rust. The rubber layer is resistant to the erosion of ethylene glycol and rust inhibitors in the coolant, making it suitable for scenarios with long-term contact with cooling media.
Iii. Applicable Scenarios and Sealing Cases
Agricultural machinery scene
Case: During the operation of a Perkins 1104C tractor in the field on a certain farm, the gasket of the raw water pump cracked due to the bumpy road surface, causing about 0.5 liters of coolant to leak weekly and requiring frequent fluid replenishment. After replacing with 3682A011, the corrugated seal structure absorbed vibration, eliminating the leakage phenomenon. The engine water temperature stabilized at 95℃, the farming efficiency increased by 10%, and the annual coolant cost was saved by 800 yuan.
Value: The anti-vibration design is designed to cope with the jolts in farmland, ensuring the sealing of the cooling system and preventing downtime during the busy farming season due to lack of liquid.
Generator set scene
Case: In a certain data center, the Perkins 404D backup generator set experienced water leakage from the water pump due to the aging of the gasket. When the backup was started, the water temperature rose rapidly, posing a power supply risk. The temperature-resistant sealing design of 3682A011 ensures that the unit operates at full load in high summer temperatures (40℃) without leakage, and the start-up success rate is increased to 100%, guaranteeing the stability of power supply for medical equipment.
Value: High-temperature stability ensures reliable cooling of the backup power supply in emergency situations, meeting the requirements of high-reliability scenarios.
Construction machinery scene
Case: At a certain construction site, the Perkins 1106A loader used non-original gaskets in a high-humidity environment, causing rust and leakage at the joint between the water pump and the cylinder block. It needs to be disassembled and maintained every month. The galvanized frame of 3682A011 is anti-rust, and when combined with rubber seals, the maintenance cycle is extended to 1200 hours, equipment downtime is reduced by 40%, and the hydraulic system efficiency is increased by 8% due to stable water temperature.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning and pretreatment: Before installation, wipe the sealing surfaces of the water pump base and cylinder block with Perkins' dedicated cleaner (P-0013) to remove scale, oil stains and metal debris, ensuring a tight fit of the gasket.
Bolt tightening: Use the diagonal step-by-step tightening method (in two steps: 50%→100% torque), and finally tighten according to the original factory standard (20±2N · m) to avoid the gasket being skewed due to uneven force.
Old parts inspection: When replacing, simultaneously check whether the sealing surfaces of the water pump casing and the cylinder block are deformed (if the flatness error is greater than 0.1mm, correction is required) to avoid sealing failure caused by uneven contact surfaces.
Daily maintenance and extreme response
Leakage monitoring: During each maintenance, observe whether there are any traces of coolant around the gasket. If leakage is found, promptly check the tightness of the bolts or the condition of the gasket.
Extreme environments: In extremely cold winter regions, it is recommended to use Perkins long-lasting antifreeze (freezing point -40 ℃) in combination to prevent the coolant from freezing and cracking the gasket. During the hot summer, regularly clean the heat dissipation holes of the water pump to prevent the gasket from aging too quickly due to excessively high water temperature.
V. Quality Assurance and Cost-effectiveness
Perkins 3682A011 water pump gasket has passed triple tests
Pressure resistance test: Maintained at 1.5bar water pressure for 30 minutes without leakage, far exceeding the normal working pressure of the engine (0.8-1.2bar).
Compatibility certification: Compatible with the water pump and cylinder block materials (cast iron/aluminum alloy) of Perkins 400/1100 series engines, with no risk of electrochemical corrosion.
Life test: Simulate 100,000 cold and hot cycles (-40℃ to 120℃), with no cracks in the gasket and a sealing performance retention rate of ≥90%.
The selection of this gasket can achieve:
The leakage faults of the cooling system have been reduced by 80%, and the annual coolant replenishment cost has dropped by 30%.
The maintenance cycle of the water pump is extended by 50%, and the equipment downtime is reduced by 40%. It is especially suitable for continuous operation during the busy farming season and construction peak season.
Avoid engine overheating caused by leakage (such as cylinder pulling and cylinder flushing), and reduce major maintenance risks (the cost of a single major overhaul can be saved by several thousand yuan).
