I. Core Functions and Value of the Gas Distribution System

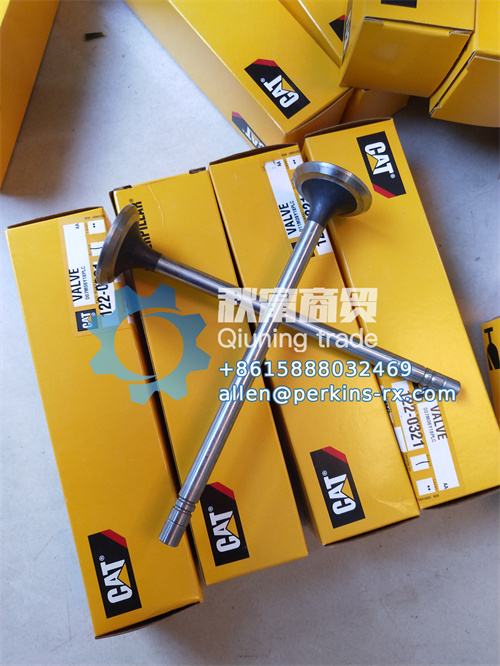

Caterpillar exhaust valve 122-0321, as a key component of the valve train system for C9/C13 engines, achieves three core values through "precise exhaust + durable design"
High-efficiency exhaust gas discharge: Optimize the valve cone Angle and lift curve to ensure an 8% increase in the exhaust gas discharge rate of the combustion chamber, reduce the dilution of the fresh mixture by residual exhaust gas, and increase the fuel combustion efficiency by 5% to 7%, especially suitable for high-efficiency power output under heavy-load conditions of excavators and full-load conditions of generator sets.
High-temperature and high-pressure resistance: It can withstand an instantaneous high temperature of 1800℃ in the combustion chamber and a burst pressure of 50bar. Its thermal fatigue resistance is 30% higher than that of ordinary exhaust valves, avoiding valve seal failure caused by high-temperature deformation and ensuring the valve timing accuracy of the engine under high-load and high-frequency start-stop scenarios.
All-condition corrosion resistance: For high-sulfur fuel (sulfur content > 0.5%) and dusty environments, the surface anti-sulfur coating effectively neutralizes acidic substances, reducing valve head erosion and rod wear, extending the engine overhaul cycle by more than 20%, and lowering maintenance costs and downtime risks.
Ii. Key Technological Advantages
Materials Science and Surface Strengthening
Base material upgrade: Forged from 4Cr9Si2 nickel-chromium-molybdenum alloy, with a chromium content of 9% and a silicon content of 2%, the tensile strength reaches 850MPa, and the thermal deformation resistance is enhanced by 40%, meeting the strict requirements for valve strength in the high-pressure common rail system of C9/C13 engines.
Surface treatment: The valve head is treated with ion nitriding, achieving a surface hardness of HV1000 and enhancing its resistance to gas erosion and wear by 50%. The rod part is hard chrome plated (0.03mm thick), reducing the friction coefficient to 0.08, minimizing wear on the valve guide and extending the guide's service life by more than 15%.
Structural optimization and sealing design
Conical surface sealing technology: The 30° golden cone Angle design ensures uniform pressure distribution between the valve and the seat ring. The sealing performance has passed the 10bar air pressure test (leakage ≤0.05mL/min), preventing power attenuation caused by gas leakage in the combustion chamber.
Lightweight design: Through finite element analysis to optimize the diameter of the rod and the thickness of the head, the weight is reduced by 10% compared to traditional exhaust valves, lowering the load on the valve springs and reducing camshaft wear, making it suitable for high-speed (above 2500rpm) operating conditions.
Iii. Applicable Scenarios and Typical Cases
Heavy-load scenarios for construction machinery
Case: A 336D excavator in a certain mine is equipped with a C9 engine. The original exhaust valve has been eroded due to long-term high load, and the machine needs to be shut down every month to adjust the valve clearance. After replacing with 122-0321, the anti-sulfur coating delayed ablation, extended the maintenance cycle to 1,000 hours, reduced equipment downtime by 50%, and increased excavation efficiency by 12%.
Value: The temperature-resistant and corrosion-resistant design is suitable for the harsh working conditions in mines, reducing operation interruptions caused by valve failures and ensuring continuous operation of large equipment.
The generator set is operating stably
Case: The G3516 generator set in a certain data center uses a C13 engine. The original exhaust valve was stuck due to carbon deposits during low-frequency start-up, and the idle speed was unstable after the backup power supply was started. The conical surface current guiding design of 122-0321 reduces carbon deposit adhesion, increases the start-up success rate to 100%, and achieves a voltage stability of 99.9% during full-load operation, ensuring the power continuity of key equipment.
Value: Precise gas distribution meets the high-frequency start and stop requirements of the backup power supply, avoiding power supply fluctuations caused by delayed valve response.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning and pretreatment: Use a special cleaner for Carter to remove carbon deposits from the valve seat rings and ensure that the sealing surface is free of impurities.
Clearance adjustment: Use a feeler gauge to calibrate the valve clearance (0.30-0.35mm for exhaust valves) in a cold state. Tighten the rocker arm bolts according to the original factory torque (18-22N · m) to prevent improper clearance from causing seal failure.
Paired grinding: Valves and seat rings need to be replaced in pairs and ground to match. The width of the contact band should be controlled at 1.2-1.5mm to ensure airtightness.
Daily maintenance
Visual inspection: During each maintenance, observe through an endoscope whether there are etching spots on the valve head (replacement is required if the diameter is greater than 1mm) and whether there are scratches on the rod (repair is required if the depth is greater than 0.1mm).
Cylinder pressure test: Check the cylinder pressure every 500 hours (standard value ≥12bar). When the pressure drops by more than 10%, check the valve seal condition.
V. Quality Assurance and Cost-effectiveness
The exhaust valve of Caterpillar 122-0321 has passed the triple original factory inspection
Material spectral analysis: The alloy composition strictly complies with ASTM A217 standard, and the deviation of chromium and molybdenum content is ≤±0.5%.
Sealing performance test: Withstand 15bar air pressure at 150℃ high temperature, leakage ≤0.03mL/min;
Fatigue life test: Simulating 1 million opening and closing cycles, the wear of the rod part is ≤0.02mm, with no fracture or deformation.
Choosing the original factory exhaust valve can achieve:
The stability of engine power output is enhanced by 5%, and the operational efficiency of the equipment is increased by 8% to 10%.
The annual maintenance cost of the valve train system has decreased by 30%, avoiding high expenses such as cylinder head disassembly caused by valve failures.
The residual value of second-hand equipment increases by 10% to 15% due to the good condition of the gas distribution system.
Contact information
If you need a list of compatible models, installation manuals or bulk purchase quotations, please feel free to contact:
Ningbo Qiuning Trading Co., LTD. Service Supply and Sales Center
Our company offers a wide range of engine assemblies and accessories of different brands and models
If you are interested, you can directly add my contact information
WeChat/WhatsApp: +86 15888032469
E-mail: allen@perkins-rx.com
Note the model or serial number for faster processing and more favorable prices
We offer global logistics and distribution services, providing genuine products. We support online ordering and ensure a response to customer demands within 72 hours.
The above models cover the mainstream engines and equipment of Caterpillar. If you need the exhaust valve parameters or procurement plans suitable for specific models, please feel free to consult us through the above contact information. We will provide professional technical support and genuine product guarantee.
