I. Core Functions and Engine Protection Value

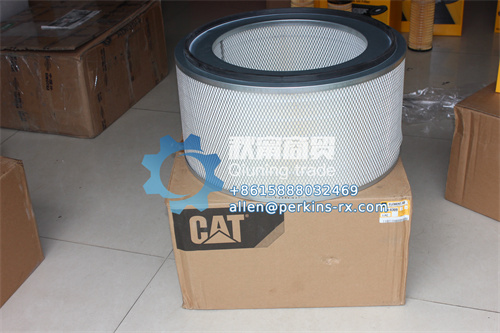

Caterpillar diesel engine parts air filter elements, as the "first line of defense" of the engine intake system, achieve three core values through the design of "precise filtration + intelligent protection"
High-efficiency dust blocking: It adopts a three-effect filtration structure of "pre-filter layer + main filter layer + nano-coating", effectively intercepting 99.9% of particles larger than 5μm in the air (including dust, sand grains, and metal debris), preventing impurities from entering the combustion chamber and causing cylinder liner wear and valve carbon deposits, and extending the engine overhaul cycle by more than 25%.
All-condition adaptability: It can withstand low temperatures of -40 ℃ and high temperatures of 70℃, and is resistant to filter paper expansion in humid environments (thickness change ≤5%). It is suitable for complex scenarios such as high dust in mines, high humidity in ports, and frequent ice and snow in cold regions, ensuring the stability of the intake system.
Intelligent maintenance reminder: Some models are integrated with differential pressure sensors to monitor intake resistance in real time and issue replacement alarms through the control panel (such as 4509695), avoiding omissions in manual inspections and increasing maintenance efficiency by 40%.
Ii. Key Technological Advantages
Upgrade of filter materials
Composite filter paper technology: The main filter layer is made of a blend of glass fiber and synthetic fiber (80g/㎡), with a specific surface area of up to 300㎡/g. The dust holding capacity is 30% higher than that of ordinary filter paper, and the replacement cycle is extended to over 1000 hours.
Nano anti-fouling coating: The surface is coated with PTFE waterproof and oil-proof coating, with a contact Angle greater than 110°, which prevents oil stains and water vapor from adhering to the filter element. It is especially suitable for the high-humidity intake environment of diesel engine exhaust gas recirculation (EGR) systems.
Structural optimization design
Flow-directing housing: The air inlet adopts a 45° bevel design, reducing air flow resistance by 15%, ensuring the intake volume of the engine under high load (maximum flow rate up to 2000m³/h), and avoiding power attenuation caused by insufficient air intake.
Double sealing structure: The end cover and the housing are sealed with double O-rings (made of FKM fluororubber), with a leakage rate of ≤0.5% under a negative pressure of 10kPa, preventing unfiltered air from bypassing the engine.
Iii. Applicable Scenarios and Typical Cases
High-dust scenarios for construction machinery
Case: A 336D excavator in a certain mine was operating in an open-pit mine. The original filter element needed to be replaced every 100 hours, and the wear of the cylinder liner led to a 10% decrease in power. After replacing the CAT original factory filter element, the dust blocking rate was increased to 99.9%, the filter element replacement cycle was extended to 300 hours, the engine major overhaul time was postponed by 8,000 hours, and the annual maintenance cost decreased by 50%.
Value: Super strong dust resistance reduces wear of core components, ensures continuous operation of mining equipment, and lowers downtime losses.
Low-maintenance scenarios for generator sets
Case: The G3516 generator set in a certain data center is equipped with CAT air filters. The intelligent differential pressure alarm system automatically prompts replacement (4 times a year), avoiding the risk of manual high-altitude inspection. Moreover, the low-resistance design of the filter reduces the fuel consumption of the unit by 2%, saving approximately 6,000 yuan in fuel costs annually.
Value: Intelligent prompts and low-resistance design meet the unattended operation requirements of backup power supplies, enhancing operation and maintenance efficiency and economy.
Iv. Installation and Maintenance Suggestions
Installation specifications
Sealing performance inspection: During installation, ensure that the filter element is tightly attached to the housing and that the sealing ring is not aged or deformed (it is recommended to replace the sealing ring simultaneously each time it is replaced).
Pipeline cleaning: Before replacing the filter element, blow the intake pipeline with compressed air (pressure ≤0.6MPa) to prevent residual dust from entering the engine.
Daily maintenance
Pre-filter maintenance: In dusty environments, clean the pre-filter (centrifugal type/cyclone type) weekly to reduce the load on the main filter element.
Humidity response: In coastal or rainy areas, check the filter element for moisture every month (replace the filter paper immediately if it becomes soft) to prevent mold growth and affect filtration efficiency.
V. Quality Assurance and Cost-effectiveness
Caterpillar air filters have passed three rounds of original factory inspections:
Filtration efficiency test: In an environment with a dust concentration of 50mg/m³, the dust concentration at the outlet is ≤0.05mg/m³, conforming to the ISO 16890 standard;
Durability test: Simulate 100,000 vibrations (amplitude ±2mm), the filter element shows no damage or delamination, and the retention rate of filtration performance is ≥95%.
Compatibility certification: 100% compatible with the intake systems of all CAT engine series, and has been installed and operated for 5,000 hours without any faults.
Choosing the original factory filter element can achieve:
The wear of engine cylinder liners is reduced by 40%, and the service life of piston rings is extended by 30%.
The maintenance cost of the intake system has decreased by 35%, avoiding major overhauls caused by filter element failure (the cost of a single major overhaul can be saved by tens of thousands of yuan).
The operational efficiency of the equipment has been increased by 5% to 8%, and especially in high-dust environments, the power attenuation has been reduced by 60%.
Contact information
If you need CAT air filter element compatibility solutions, replacement cycle tables or bulk purchase quotations, please feel free to contact:
Ningbo Qiuning Trading Co., LTD. Service Supply and Sales Center
Our company offers a wide range of engine assemblies and accessories of different brands and models
If you are interested, you can directly add my contact information
WeChat/WhatsApp: +86 15888032469
E-mail: allen@perkins-rx.com
Note the model or serial number for faster processing and more favorable prices
We offer global logistics and distribution services, providing genuine products. We support online ordering and ensure a response to customer demands within 72 hours.
The above models cover the entire range of Caterpillar diesel engines and corresponding equipment. If you need filter parameters or technical support suitable for specific models, please feel free to contact us through the above contact information. We will provide professional selection suggestions and guarantee authenticity.
