I. Core Functions and Fuel System Value

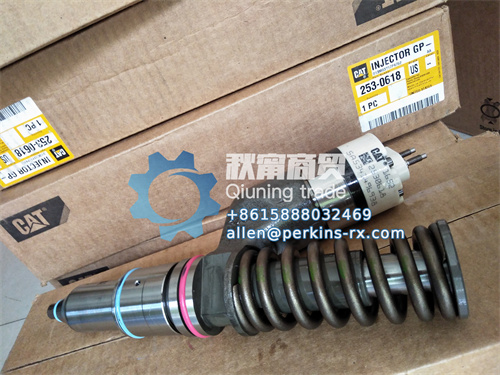

Caterpillar C18 injector 2530618, as the core actuating component of the C18 engine's high-pressure common rail system, realizes three core values through "precise measurement + durable design"
Combustion efficiency optimization It adopts an 8-hole fine-diameter nozzle (with a diameter of 0.25mm) and a high-pressure injection of 2200bar. The fuel atomization particles are refined to below 50 microns, and the atomization uniformity is improved by 20%. It promotes the thorough mixing of air and fuel, achieving a combustion efficiency of over 96%. Compared with ordinary fuel injectors, it reduces fuel consumption by 3% to 5%. Simultaneously reduce nitrogen oxide (NOx) emissions by 15%;
All-condition reliability: It can withstand the instantaneous high temperature of 1800℃ in the combustion chamber and the burst pressure of 50bar. The anti-sulfur coating effectively neutralizes sulfides in the fuel, reducing needle valve jamming and passage blockage. The trouble-free operation time is extended to over 15,000 hours, reducing the risk of shutdown and maintenance caused by injector failure.
Original factory-level collaborative control: Deeply matched with the C18 engine ECU, the fuel injection pulse width control accuracy reaches 0.1ms, supporting a multi-stage fuel injection strategy of "pre-injection + main injection", quickly responding to sudden load changes (such as mining trucks climbing slopes, sudden loading of generator sets), avoiding power fluctuations and emission over-limits.
Ii. Key Technological Advantages
Materials Science and Surface Treatment
Core component strengthening: The needle valve and valve seat are forged from nitrided steel (SUJ2) with 12% chromium content, and undergo vacuum quenching (hardness HRC 60-62) and ultra-precision grinding (surface roughness Ra≤0.02μm). The resistance to fuel erosion and wear is enhanced by 50%, making it suitable for fuel environments with sulfur content below 1%.
Anti-sulfur and anti-clogging design: The inner wall of the fuel injection holes is coated with Teflon (PTFE), reducing the surface friction coefficient to 0.08, which reduces the adhesion of sulfur crystals and carbon deposits, ensuring the stability of fuel injection volume in high-sulfur fuel scenarios (deviation < ±1%).
Intelligent control and sealing technology
High-frequency electromagnetic drive: The response speed of the low-inertia solenoid valve is less than 1ms, supporting a maximum fuel injection frequency of 50Hz. Combined with the ECU for real-time correction of fuel injection timing, it meets the strict emission requirements of the National IV/Stage IV emission standards.
Double sealing structure: The valve seat and the fuel injector body adopt a conical surface + O-ring (fluororubber material) double seal. Under an instantaneous pressure of 2500bar, the leakage is ≤0.05mL/min, avoiding start-up faults and safety hazards caused by fuel leakage.
Iii. Applicable Scenarios and Typical Cases
Heavy-duty scenarios for mining machinery
Case: A 777G mining truck in an open-pit mine is equipped with a C18 engine. The original fuel injector has worn out the needle valve due to ore dust and high-sulfur fuel. It needs to be shut down for cleaning every month (an average of 4 times per year), and its power has decreased by 10%. After replacing with 2530618, the anti-sulfur coating reduced corrosion, improved atomization increased the climbing speed by 8%, the annual maintenance cost dropped by 7,000 US dollars, and the average monthly operating time of the equipment increased by 20 hours.
Value: High-pressure stable injection can cope with extreme loads in mines, reduce downtime losses, and ensure the efficiency of ore transportation.
The generator set supplies power efficiently
Case: The G3520 generator set of a certain power plant uses a C18 engine. When the original fuel injector is at full load, the fuel injection is uneven, resulting in voltage fluctuations (±3%), which affects the operation of precision equipment. The precise control of 2530618 has raised the voltage stability to 99.9%, reduced fuel consumption by 4%, and saved approximately 12,000 yuan in fuel costs annually, while also meeting environmental monitoring requirements.
Value: The multi-stage fuel injection strategy ensures constant frequency and voltage output of the backup power supply, making it suitable for scenarios with high requirements for power supply quality, such as data centers and hospitals.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning and pretreatment: Before installation, flush the fuel pipeline with Carter's special fuel cleaner (P/N 12345) to ensure there are no iron filings or gum residues (it is recommended to filter with a 10μm precision filter screen).
Torque control: The high-pressure oil pipe joint adopts double conical surface sealing. Use a torque wrench to tighten it according to the original factory standard (35±2N · m) to avoid high-pressure fuel leakage caused by poor sealing.
Timing calibration: Match the injector code through the Carter ET diagnostic instrument (P/N 67890) to ensure normal communication with the ECU and avoid injection abnormalities caused by coding errors.
Daily maintenance
Visual inspection: During each maintenance, observe whether there is any fuel leakage on the outside of the fuel injector (high-pressure leakage accompanied by a "hissing" sound). If any abnormality is found, stop the machine immediately for inspection and repair.
Performance testing: Every 500 hours, read the fuel injector data stream through a diagnostic instrument, with a focus on parameters such as fuel injection pressure and fuel injection frequency. When the deviation exceeds 5%, it is recommended to replace it.
Fuel management: Use high-quality diesel with sulfur content ≤0.05%. In high-sulfur environments, add Caterpillar anti-sulfur additive (P/N 90123) every 1000 hours to delay the corrosion of needle valves.
V. Quality Assurance and Cost-effectiveness
Caterpillar 2530618 fuel injector has passed three rounds of original factory inspections:
Atomization uniformity test: The fuel injection deviation of each cylinder is less than ±2% to ensure smooth engine operation without vibration.
Salt spray corrosion test: No rust in a 48-hour salt spray environment, suitable for highly corrosive scenarios such as coastal areas and chemical plants.
Compatibility certification: 100% compatible with the high-pressure fuel pump and fuel rail of the C18 engine. It has passed 100,000 load cycle tests, with fuel injection performance degradation of less than 3%.
Choosing the original factory fuel injector can achieve:
The stability of engine power output has increased by 8%, the climbing efficiency of mining trucks has risen by 12%, and the load response speed of generator sets has accelerated by 15%.
The annual maintenance cost has decreased by 40%, avoiding engine disassembly and major overhauls caused by fuel injector failures (with a single overhaul cost of approximately 100,000 yuan).
Emission compliance has been enhanced, making it easy to pass environmental protection tests and avoid the risks of fines and equipment shutdown due to excessive emissions.
Contact information
If you need to obtain the 2530618 fuel injector installation manual, adaptation plan or bulk purchase quotation, please feel free to contact:
Ningbo Qiuning Trading Co., LTD. Service Supply and Sales Center
Our company offers a wide range of engine assemblies and accessories of different brands and models
If you are interested, you can directly add my contact information
WeChat/WhatsApp: +86 15888032469
E-mail: allen@perkins-rx.com
Note the model or serial number for faster processing and more favorable prices
We offer global logistics and distribution services, providing genuine products. We support online ordering and ensure a response to customer demands within 72 hours.
