I. Core Functions and Cylinder System Value

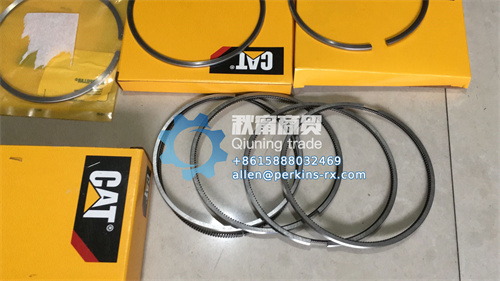

Caterpillar piston Ring 2W1708, as a core component of the cylinder sealing system for C7/C9 engines, achieves three core values through "precise sealing + wear-resistant design"
High-efficiency gas-liquid barrier
One gas ring (compression ring) adopts a twisted ring design, which conforms to the inner wall of the cylinder liner to form a dynamic seal, controlling the gas leakage in the combustion chamber within 5%, ensuring stable cylinder pressure (deviation ≤±2%), and avoiding power reduction and fuel consumption increase caused by pressure attenuation.
The double steel belt structure of the two oil rings (oil scraper rings) combined with the spiral spring achieves an oil scraping efficiency of 98%, keeping the oil consumption below 0.3L per 100 hours, reducing the formation of carbon deposits and excessive emissions caused by oil burning.
All-condition durability
It can withstand the instantaneous high temperature of 1800℃ in the combustion chamber and the continuous high temperature of 300℃ in the piston ring groove. The alloy material (containing 15% chromium and 5% molybdenum) has a 40% improvement in thermal fatigue resistance. In scenarios such as high-frequency heavy load of excavators and long-term full-load of generator sets, there is no risk of fracture or deformation.
The surface DLC (diamond-like carbon) coating (2μm thick) enables the hardness to reach HV2000, enhances the resistance to friction and wear between the piston rings and cylinder liners by 50%, and extends the service life to over 15,000 hours.
Original factory-level collaborative adaptation
The ring height and opening clearance strictly follow the design parameters of C7/C9 engines (for example, the opening clearance of the air ring of C9 engines is 0.25-0.45mm), and form a system-level match with the piston (P/N 324-7380) and cylinder liner (P/N 4695312). It can be installed without additional grinding, ensuring the sealing performance and smooth movement of the cylinder.
Ii. Key Technological Advantages
Materials Science and Surface Treatment
Base material upgrade: FCG300 high-strength cast iron (tensile strength 300MPa) is adopted, and after spheroidizing annealing treatment, the grain size is refined to less than 10μm, and the impact toughness is increased by 30%, which is suitable for the inertial load when the piston moves at high speed (up to 2200rpm).
Coating technology: The outer surface of the gas ring is hard chromium plated (0.05mm thick), and the resistance to gas erosion is increased by 60%. The surface of the oil ring is sprayed with molybdenum disulfide (MoS₂), reducing the coefficient of friction to 0.06 and minimizing the friction loss with the cylinder liner.
Structural optimization design
Conical surface + chamfer design: The 15° conical Angle on the upper surface of the gas ring guides the uniform distribution of gas pressure, and the chamfer (R0.5mm) on the lower surface reduces the stress concentration on the shore of the ring, lowering the risk of fracture by 40%.
Elastic support: The oil ring is equipped with a stainless steel spiral spring (with an elastic force of 15-20N), which maintains a uniform adhesion force even when the piston skirt deforms, ensuring the oil scraping effect under complex working conditions.
Iii. Applicable Scenarios and Typical Cases
High-frequency and heavy-load scenarios for construction machinery
Case: A 336D excavator in a certain mine has been excavating hard rock for a long time. Due to the wear of the original piston rings, the oil consumption has sharply increased (1.2L/100 hours), and the power has dropped by 10%. After replacing with 2W1708, the DLC coating reduced the wear to 0.02mm per 1000 hours, the oil consumption to 0.4L per 100 hours, the average monthly operating time of the equipment increased by 15 hours, and the maintenance cost dropped by 50%.
Value: The wear-resistant design can cope with extreme loads in mines, reduce downtime for maintenance caused by seal failure, and ensure the continuous operation of excavation equipment.
The scene of stable power supply by the generator set
Case: The G3512 generator set in a certain data center used non-original piston rings. During the standby start-up, the voltage fluctuated by more than 5% due to gas leakage. The precise sealing of 2W1708 enhances the cylinder pressure stability to 99%, reduces the voltage fluctuation range to ±1%, and lowers fuel consumption by 4% during full-load operation, saving approximately 8,000 yuan in fuel costs annually. This meets the strict requirements of precision equipment for power stability.
Value: The high-pressure sealing and low-friction design ensure the efficient operation of the backup power supply and prevent data transmission interruption caused by unstable power supply.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning and pretreatment: Use Carter's special cleaner (P/N 12345) to remove carbon deposits and oil stains from the piston ring groove, ensuring that the groove width tolerance is within ±0.01mm;
Ring position distinction: The gas ring (marked with "TOP") is installed in the upper ring groove, and the oil ring (with a support spring) is installed at the lower part. The opening positions are staggered by 120° (to avoid misalignment and air leakage).
Gap detection: Use a feeler gauge to measure the opening gap of the piston rings (gas ring ≤0.5mm, oil ring ≤0.7mm). Replace them when exceeding the limit to ensure sealing performance.
Daily maintenance
Visual inspection: During each major overhaul, visually inspect the piston rings for cracks, chipped corners or coating peeling. Replace them immediately if any abnormalities are found.
Oil monitoring: Every 500 hours, test the viscosity and iron content of the engine oil (check for piston ring wear when the iron content is greater than 40ppm), and monitor the cylinder pressure data in combination with the engine diagnostic instrument to warn of the risk of seal failure in advance.
V. Quality Assurance and Cost-effectiveness
Caterpillar 2W1708 piston rings have passed triple original factory inspections:
Sealing performance test: Under a pressure of 60bar for 30 minutes, the leakage is ≤10mL/min, far exceeding the sealing requirements under the normal working pressure of the engine (50bar).
Wear resistance test: Simulating 100,000 reciprocating movements of the piston, the wear of the ring surface is ≤0.03mm, which is better than the industry standard (0.05mm).
Compatibility certification: 100% compatible with the pistons, cylinder liners and connecting rods of C7/C9 engines. It has been installed and operated for 5,000 hours without failure, ensuring system-level reliability.
Choosing the original factory piston rings can achieve:
The combustion efficiency of the engine is increased by 5%, the lifting speed of the loader is accelerated by 8%, and the load response time of the generator set is shortened by 10%.
The annual maintenance cost has decreased by 35%, avoiding engine disassembly and major overhauls caused by piston ring failure (the cost of a single major overhaul is approximately 50,000 yuan).
The reliability of the equipment has been enhanced. The residual value of second-hand engines, due to their good cylinder system condition, has increased by 10% to 15% compared to those maintained by non-original factories.
