I. Core Functions and Value of the Gas Distribution System

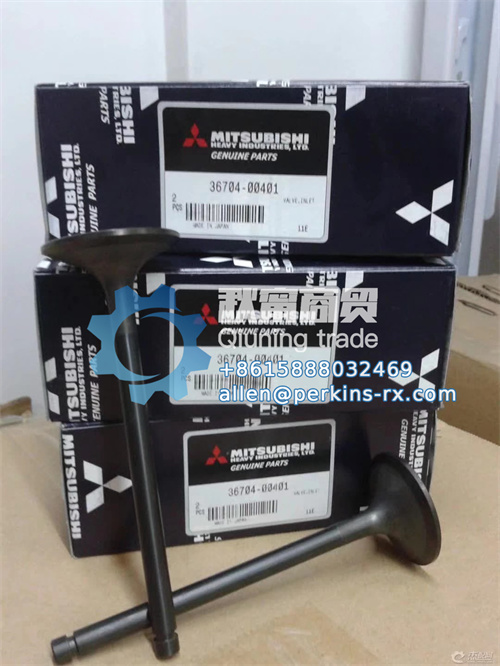

Mitsubishi 36704-00701 valves, as key components of the valve train system for heavy-duty engines, achieve three core values through "precise opening and closing + durable design"
High-efficiency gas distribution control
Optimize the valve cone Angle and lift curve to ensure that the exhaust gas discharge rate of the combustion chamber increases by 10%, the fresh air intake volume increases by 8%, and the fuel combustion efficiency improves by 5% to 7%, especially meeting the power output requirements under harsh working conditions such as heavy-load excavation of excavators and long-term full-load operation of generator sets.
Precisely seal the combustion chamber to keep the gas leakage within 0.5%, maintain stable cylinder pressure (deviation ≤±3%), and prevent power attenuation and excessive emissions caused by gas distribution deviation.
All-condition durability
It can withstand the instantaneous high temperature of 1800℃ in the combustion chamber and the burst pressure of 50bar. Its thermal fatigue resistance is 35% higher than that of ordinary valves. In environments such as high-frequency vibration of mining machinery and high-humidity corrosion of port equipment, there is no risk of deformation or erosion, and its service life is extended to more than 15,000 hours.
Designed for high-sulfur fuel (sulfur content > 0.5%), the surface anti-sulfur coating effectively neutralizes acidic substances, reduces valve head erosion and rod wear, and lowers the frequency of engine major overhauls by 20%.
Original factory-level compatibility
Strictly follow the parameters of the valve train systems of engines such as S6R2 and S12R (such as valve stem diameter tolerance ±0.01mm), and form a system-level match with the valve seat rings and camshafts. It can be installed without additional grinding, ensuring the accuracy of valve train timing and reducing abnormal wear caused by installation errors.
Ii. Key Technological Advantages
Materials Science and Surface Strengthening
Base material upgrade: Forged from 4Cr9Si2 nickel-chromium-molybdenum alloy, with a chromium content of 9% and a silicon content of 2%, the tensile strength reaches 850MPa, and the thermal deformation resistance is enhanced by 40%, meeting the strict requirements for valve strength in the high-pressure common rail system of heavy industry engines.
Surface treatment: The valve head is treated with ion nitriding, achieving a surface hardness of HV1000 and enhancing its resistance to gas erosion and wear by 50%. The rod part is hard chrome plated (0.03mm thick), reducing the friction coefficient to 0.08, minimizing wear on the valve guide and extending the guide's service life by more than 15%.
Structural optimization design
Conical surface sealing technology: The 30° golden cone Angle design ensures uniform pressure distribution between the valve and the seat ring (15-20N/mm²), and the sealing performance has passed the 10bar air pressure test (leakage ≤0.05mL/min), effectively preventing gas leakage in the combustion chamber.
Lightweight design: Through finite element analysis to optimize the diameter of the rod and the thickness of the head, the weight is reduced by 12% compared to traditional valves, lowering the load on the valve spring, reducing camshaft wear, and meeting the high-frequency opening and closing requirements under high-speed (above 2500rpm) conditions.
Iii. Applicable Scenarios and Typical Cases
Heavy-load scenarios for construction machinery
Case: The EX200 excavator in a certain mine is equipped with the S6R2 engine. The original valves have been eroded due to long-term high load, and the machine needs to be shut down every month to adjust the valve clearance. After replacing 36704-00701, the anti-sulfur coating delayed ablation, extended the maintenance cycle to 1000 hours, reduced equipment downtime by 40%, and increased excavation efficiency by 12%.
Value: The temperature-resistant and corrosion-resistant design is designed to cope with the harsh working conditions in mines, reducing operation interruptions caused by valve failures and ensuring continuous operation of large equipment.
The scene of stable power supply by the generator set
Case: In a certain data center, the S12R generator set used non-original valves. When starting as a backup, due to carbon deposits on the valves, they got stuck, causing voltage fluctuations of over 5%. The conical surface current guiding design of 36704-00701 reduces carbon deposit adhesion, increases the start-up success rate to 100%, and achieves voltage stability of 99.9% during full-load operation, ensuring the power continuity of precision equipment.
Value: Precise gas distribution ADAPTS to the high-frequency start and stop requirements of backup power supply, avoids power supply fluctuations caused by delayed valve response, and meets the requirements of high-reliability scenarios.
Iv. Installation and Maintenance Suggestions
Installation specifications
Cleaning and pretreatment: Use Mitsubishi's dedicated cleaner to remove carbon deposits from the valve seat rings, ensuring that the sealing surface is free of impurities and the roughness Ra is ≤3.2μm.
Clearance adjustment: Use a feeler gauge to calibrate the valve clearance (0.25mm for intake valves and 0.30mm for exhaust valves) in a cold state. Tighten the rocker arm bolts according to the original factory torque (18-22N · m) to prevent improper clearance from causing seal failure.
Paired grinding: Valves and seat rings need to be replaced in pairs and ground to match. The width of the contact band should be controlled at 1.2-1.5mm to ensure airtightness.
Daily maintenance
Visual inspection: During each maintenance, observe through an endoscope whether there are etching spots on the valve head (replacement is required if the diameter is greater than 1mm) and whether there are scratches on the rod (repair is required if the depth is greater than 0.1mm).
Cylinder pressure test: Check the cylinder pressure every 500 hours (standard value ≥12bar). When the pressure drops by more than 10%, check the valve sealing condition and monitor the valve timing data in combination with the diagnostic instrument.
V. Quality Assurance and Cost-effectiveness
Mitsubishi 36704-00701 valves have passed three rounds of original factory inspections:
Material spectral analysis: The alloy composition strictly complies with the JIS G4311 standard. The deviation of chromium and molybdenum content is ≤±0.5%, ensuring high-temperature strength.
Sealing performance test: Withstanding 15bar air pressure at 150℃ high temperature, leakage ≤0.03mL/min, far exceeding industry standards;
Fatigue life test: Simulating 1 million opening and closing cycles, the wear of the rod part is ≤0.02mm, with no fracture or deformation, ensuring long-term reliable operation.
Choosing the original factory valve can achieve:
The stability of engine power output is enhanced by 5%, equipment operation efficiency is increased by 8% to 10%, and fuel economy is improved by 3% to 5%.
The annual maintenance cost of the valve train system has decreased by 30%, avoiding high expenses such as cylinder head disassembly caused by valve failures.
The residual value of second-hand equipment increases by 10% to 15% due to the good condition of the gas distribution system, significantly enhancing its market competitiveness.
