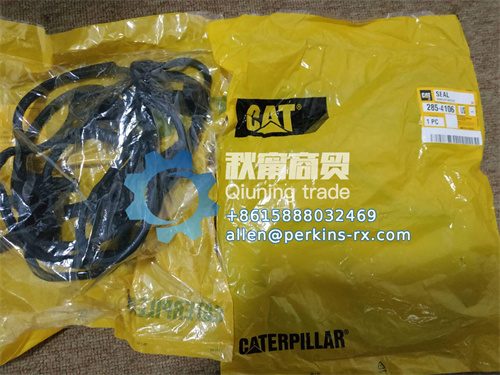

The "two-way protective barrier" of the valve train - Caterpillar C9-330D valve chamber seal ring 285-4106
In the valve valve system of construction machinery engines, the valve chamber sealing ring is a "key barrier" that isolates the internal cleanliness from the external environment. Its sealing performance directly affects the lubrication efficiency of the engine and the lifespan of its components. Caterpillar 285-4106 valve chamber sealing rings, with "original factory-level precise matching" and "all-scenario durable design" at their core, have become a reliable choice for high-load working conditions. The core value lies in the deep integration of "bidirectional sealing" and "long-term protection".
1. Original factory Compatibility: Eliminate the risk of "sealing blind spots"
As an original parts of Caterpillar, the cross-sectional dimensions and the arc of the sealing lip of 285-4106 are perfectly matched with the valve cover grooves of the C9 engine (for specific compatible models, please consult customer service). The contour curve is pressed by the original factory's high-precision mold to ensure that the contact error with the cylinder block mating surface is less than 0.02mm, avoiding the "local leakage" of general seals caused by dimensional deviations - this hidden danger can lead to oil vapor leakage (accumulation of oil stains in the engine compartment) or dust entering the valve chamber (accelerating camshaft wear). The original factory adaptation upgrades the sealing effect from "passive leakage blocking" to "native sealing", eliminating the risk of leakage from the source.
Ii. Materials and Craftsmanship: Multi-dimensional response to harsh environments
It is made of nano-scale modified fluororubber material and formed through 16-hour high-temperature vulcanization.
Balance of elasticity and strength: Shore hardness 70±5HA, capable of withstanding a tightening pressure of 20N · m for valve cover bolts, long-term compression permanent deformation rate less than 8%, ensuring that the sealing surface always adheres closely.
Wide-temperature weather resistance: After adding temperature-resistant additives, the rubber maintains its elasticity at -50℃ low temperature and does not soften or crack at 200℃ high temperature. In the temperature difference between day and night on the plateau (over 60℃) and in the high-temperature environment of mining areas, the aging rate is 50% lower than that of ordinary rubber.
Surface flow diversion design: The micro-groove structure on the inner side of the sealing lip guides the condensed engine oil to flow back to the oil pan, and the sawtooth-shaped edge on the outer side enhances the dust blocking ability, reducing the sealing failure caused by impurity retention.
This design enables the sealing ring to maintain a sealing efficiency of 99.8% even during the high-frequency vibration of the excavator's continuous operation for over 10 hours, and its service life is 70% longer than that of aftermarket parts.
Iii. Hidden Value: Safeguarding the "Clean Ecosystem" of Gas Distribution Institutions
Stable sealing performance provides triple core protection for the engine:
Internal protection: Prevent dust and moisture from entering the valve chamber to avoid abnormal wear of the camshaft and valve springs caused by contamination (the actual maintenance cycle of the valve train is extended by 40%).
External lock protection: Prevents oil vapor from leaking into the engine compartment, reduces oil loss (saving 10-15 liters of oil annually), and avoids the accumulation of oil stains that may affect the efficiency of the cooling system and the safety of the equipment.
Working condition adaptation: Sulfur resistance and fuel corrosion resistance (especially suitable for diesel with a sulfur content of more than 0.5%), reducing the risk of seal expansion and deformation, ensuring the long-term reliable operation of the engine under different fuel qualities.
If the sealing ring fails, it may lead to engine oil leakage alarms and increased maintenance costs at best, and at worst, it may cause valve jamming and abnormal engine noises due to contamination of the valve train. The repair cost can reach 3 to 5 times that of original factory parts.
Iv. Installation Suggestions and Scenario Adaptation
For construction machinery models such as 330D that are compatible with Caterpillar C9 engines, it is recommended to prioritize replacement in the following scenarios:
Obvious oil stains or abnormal oil consumption (leakage > 30ml/week) appear in the engine compartment;
After the valve cover is disassembled and repaired (to avoid secondary leakage caused by the aging of the old sealing parts);
Before the equipment enters the high-dust and high-humidity working environment (strengthen the sealing protection in advance).
When replacing, the valve cover and the cylinder block mating surface must be thoroughly cleaned. Use the original factory tools to tighten the bolts in diagonal sequence (with a torque of 12-15N · m) to ensure that the sealing pressure is evenly distributed and avoid local stress concentration.
Caterpillar C9-330D valve chamber sealing ring 285-4106 defines the sealing standard with "original factory precision" and responds to extreme working conditions with "strict material requirements". It is not merely a rubber component, but also a "two-way protective barrier" for the valve train - from compatibility to durability, every design aspect is empowering the reliability and economy of the equipment. Choosing original factory sealing rings means choosing the maintenance approach of "less leakage and less failure", ensuring that the engine interior of construction machinery always remains clean and efficient during heavy-load operations.
