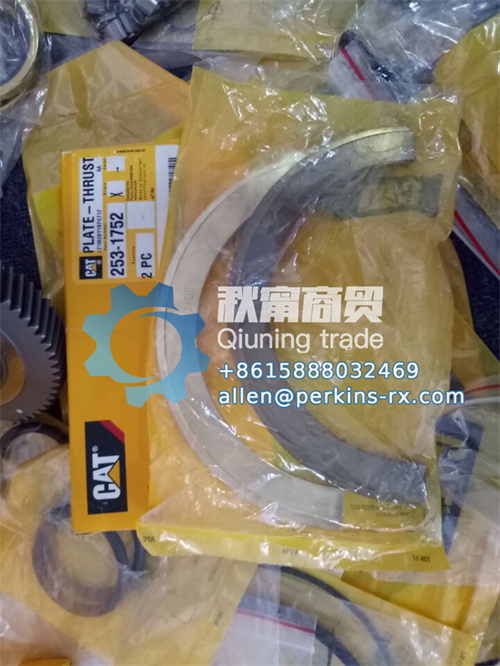

Axial limit barrier of crankshaft system - Carter thrust plate 253-1752
During the operation of the engine crankshaft, the thrust plate is a "key limiting element" that controls the axial displacement of the crankshaft and disperses thrust. Its fitting accuracy and wear resistance directly determine the crankshaft life, engine running stability, and risk of abnormal noise. The Carter 253-1752 thrust plate, with "original factory grade axial adaptation" and "impact and wear resistance characteristics" as its core, has become a reliable guarantee for heavy-duty equipment. Its value lies not only in "limit gear pushing", but also in its dual role of "stabilizing the crankshaft and protecting the whole machine".
As an original Caterpillar accessory, its thickness and contact area are perfectly matched with the crankshaft journal and cylinder block thrust surface (specific compatible models can be consulted with customer service). The bonding surface calibrated by original mechanical testing has a surface roughness of ≤ 0.4 μ m, uniform contact with the shaft neck (force deviation ≤ 5%), and can accurately control the axial clearance of the crankshaft (to avoid excessive clearance causing play or insufficient clearance causing jamming). This "exclusive adaptation" avoids the "local force overload" caused by size deviation of universal thrust plates, which can easily lead to increased journal wear (such as when excavators are overloaded and climbing hills) and significantly increase maintenance costs.
Material focus on extreme working condition tolerance: using copper based alloy (containing lead and tin elements, with a 30% improvement in friction reduction performance compared to ordinary steel sheets), with a molybdenum based wear-resistant layer sprayed on the surface (hardness up to HV300), capable of withstanding crankshaft instantaneous thrust (over 2000N); The back is treated with phosphating (to enhance friction with the cylinder body), which prevents slippage during high-frequency engine vibration and is suitable for continuous high load scenarios in mines and construction sites. Resistant to oil immersion (long-term use without corrosion or deformation), maintaining stable strength even in a cylinder body environment at 150 ℃.
The implicit value is reflected in multiple aspects: precise positioning reduces the amount of crankshaft vibration by 40% (reducing engine noise); Uniform force reduces the wear rate of the journal by 50% (prolonging the life of the crankshaft); Stable clearance ensures even distribution of oil film (avoiding dry friction), reducing damage to the cylinder block thrust surface caused by play (reducing maintenance frequency by 60%). If the thrust plate fails, there may be abnormal crankshaft noise in the short term, and in the long term, it may cause "eccentric wear" of the shaft neck, requiring a major overhaul of the entire machine.
