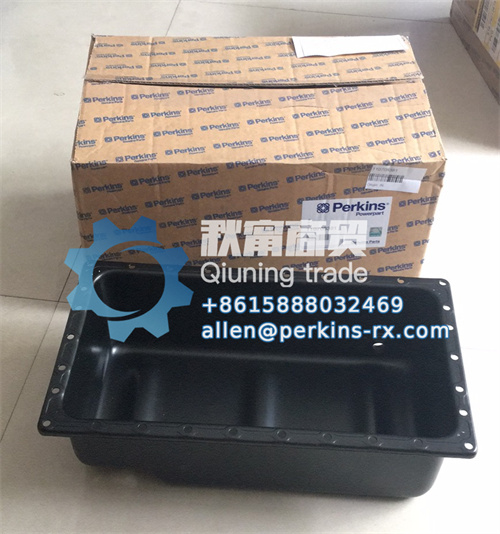

Perkins 110708381 oil pan is a core component developed for specific Perkins 1100 series models. Its structural design strictly follows the original factory technical specifications, and the original component size parameters are replicated through 3D scanning to ensure perfect fit with the engine cylinder block and avoid oil leakage problems caused by installation misalignment.
In terms of material selection, high-strength gray cast iron material is used, which is precision cast after high-temperature melting at 800 ℃. The overall hardness is 30% higher than ordinary cast iron, and it can withstand continuous vibration and pressure impact during engine operation. It is not easy to crack or deform after long-term use. The inner wall has been sandblasted to achieve a surface smoothness of Ra1.6 μ m, reducing oil flow resistance and minimizing bubbles generated by oil agitation, ensuring efficient circulation of the lubrication system.
The sealing performance is a prominent advantage of the oil pan, and the edge sealing groove is machined with a CNC lathe mirror surface, combined with a special oil resistant rubber sealing ring, which can form a zero gap sealing structure after assembly. After 24 hours of high-pressure testing, there was no leakage at a pressure of 0.8 MPa. Even when the engine is running at high temperatures causing thermal expansion and contraction of components, it can still maintain a stable sealing effect, effectively preventing oil loss and pollutant invasion.
The compatible models cover mainstream models such as Perkins 1107D-E70TA and 1107D-E70TT. During installation, there is no need to modify the original fixed points of the engine, and the original components can be replaced directly. Ordinary maintenance personnel can complete the installation within 30 minutes using conventional tools, greatly reducing equipment downtime.
The supply system relies on regional center warehousing and stocking. This model of oil pan has a standing inventory of over 500 pieces, which can be shipped out through dedicated logistics within 12 hours after placing an order. It takes 2-3 days to deliver to most regions in China. Urgent orders support expedited air delivery to ensure that customers can quickly resume operation in case of equipment failure.
For high-temperature working conditions, a heat dissipation rib design is added to the outside of the oil pan, increasing the heat dissipation area by 15%. Combined with the engine cooling system, it can reduce the oil temperature by 5-8 ℃, delay the oil oxidation rate, and extend the oil change cycle. At the same time, a magnetic drain plug hole is reserved at the bottom to facilitate the adsorption of metal debris in the engine oil and reduce internal wear of the engine.
We provide a 12-month warranty service for after-sales service. If there are any malfunctions such as oil leakage or cracking due to material or process issues, we can replace the product for free with a new one based on the purchase record. The technical team is online 7 × 12 hours a day, providing installation video guidance and model matching query services to ensure a comprehensive customer experience.
1204J-E44TA，1204J-E44TTA，1206J-E70TTA，1706J-E93TA，1706EA-E93TA，1706D-E93TA，2206D-E13TA，2406J-E13TA，2406EA-E13TA，2606JE13TA，402D-05，402J-05，403F-07，403J-07，403D-07，403J-11，403J-11T，403EA-11，403EA-11T，403D-11，403F-15，403D-15，403D-15T，403J-17，403J-17T，403EA-17，403J-E17T，404J-E22T，404J-E22TA，404EA-22，404EA-22T，404D-22，404D-22T，404D-22TA，904 4J-E28T，904J-E28TA，904D-E28T，904J-E36TA，904J-E36TA，904EA-E36TA，904D-E36TA，904D-E36TA，1103D-33，1103D-33TA，1103C33T，1104D-44，1104D-44T，1104D-44TA，1104D-E44T，1104D-E44TA，1104C-44，1104C-44T，1104C-44TA，1104A-44，1104A-44T，1106D-70TA，1106D-E70TA ，1106C70TA，1204J-E44TA，1204EA-E44TA，1204J-E44TTA ，1204EA-E44TTA，1206J-E70TA，1206EA-E70TA，1206J-E70TA，1206J-E70TTA，1206EA-E70TTA，1706J-E93TA，1706EA-E93TA，1706D-E93TA，2206D-E13TA，2406J-E13TA ，2406EA-E13TA，2506JE15TA，2506D-E15TA，2606J-E13TA，2806J-E18TA，2806EA-E18TA，2806J-E18TTA，2806D-E18TA，403D-11，403D-15，403J-E17T，404D-22，404D-22T，404D-22TA，404J-E22TA，904J-E28T，904J-E36TA，1104D-44T，1104D-44TA，1104D-E44TA 1104D-E44TA 1104C-44 1104C-44T 1104C-44TA 1106DE70TA 1204E-E44TA 1204J-E44TA，1204J-E44TTA，1206J-E70TTA，1706J-E93TA，1706EA-E93TA，1706D-E93TA，2206D-E13TA，2406J-E13TA，2406EA-E13TA，2606JE13TA，402D-05402J-05，403F-07，
