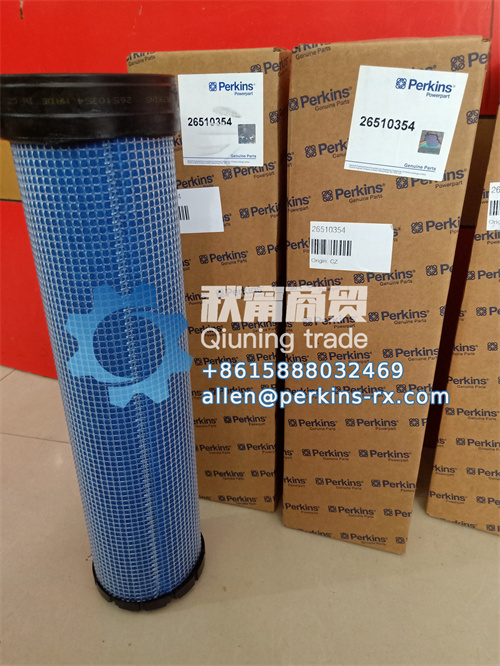

Perkins air filter 26510354 is a key protective component of the engine intake system, using "gradient filtration" technology, consisting of an outer coarse filter layer, a middle fine filter layer, and an inner adsorption layer. The outer layer is made of high-strength polyester fiber, which can intercept large particle impurities such as dust and willow catkins with a diameter of 5 μ m or more; The middle layer is made of ultrafine glass fiber, with a filtration efficiency of 99.9% for dust particles ranging from 1-5 μ m; The inner layer adopts activated carbon adsorption layer, which can capture smoke particles and oil and gas below 0.3 μ m, and triple protection ensures that the air entering the engine is clean and free of impurities.
The filter materials are connected through a hot melt adhesive composite process to prevent traditional adhesives from releasing harmful substances at high temperatures. The frame is made of heat-resistant EPDM rubber, which maintains elasticity in an environment of -40 ℃ to 120 ℃ and has a sealing fit of 100% with the filter cartridge shell, preventing unfiltered air from entering the engine through gaps and eliminating the risk of "bypass pollution". This sealing design is particularly suitable for dusty environments such as mines and construction sites, effectively reducing abnormal wear of pistons and valves.
The compatible models cover Perkins 2000 series and 3000 series engines, including mainstream models such as 2006A-E13TAG2 and 3012TAG, which are widely used in the intake systems of generator sets and construction machinery. The installation adopts a combination design of "buckle+guide rail", which is aligned with the guide rail inside the filter cartridge housing and pushed in. When you hear a "click" sound, it is fixed without tools. It can be replaced by a single person in 1 minute, saving 80% of time compared to traditional screw fixation and facilitating emergency replacement in the field.
For humid environments, the filter material undergoes hydrophobic treatment to form a water repellent film on the surface. Even when used in rainy seasons or high humidity areas, the air permeability will not decrease due to moisture in the filter material, ensuring sufficient engine intake and avoiding power attenuation. The outer packaging of the filter element is made of moisture-proof aluminum film bag, which can be stored for a long time before opening without affecting the filtration performance.
|
404D-22G*GN65732U
|
|
Maintenance parts
|
|
|
|
|
ITEM
|
Part name
|
Part number
|
Quantity (paid per vehicle)
|
|
1
|
Pre-Fule Filter
|
130306360
|
1
|
|
2
|
Fuel Filter
|
26561117
|
1
|
|
3
|
Oil Filter
|
140517050
|
1
|
|
4
|
Air Filter
|
135326206
|
1
|
|
5
|
BELT
|
080109107
|
1
|
|
|
|
|
|
|
minor repair
|
|
|
|
|
ITEM
|
Part name
|
Part number
|
Quantity (paid per vehicle)
|
|
1
|
SEAL - ROCKER BOX COVER
|
111996401
|
1
|
|
2
|
GASKET - CYLINDER HEAD
|
111147711
|
1
|
|
3
|
THERMOSTAT
|
145206230
|
1
|
|
4
|
FRONT OIL SEAL
|
198636160
|
1
|
|
5
|
SEAL - REAR END OIL
|
050209083
|
1
|
|
6
|
SOLENOID
|
U85206452
|
1
|
